TouchBerry Pi 10.1": industrial HMI panel PC with Raspberry Pi and built-in I/O

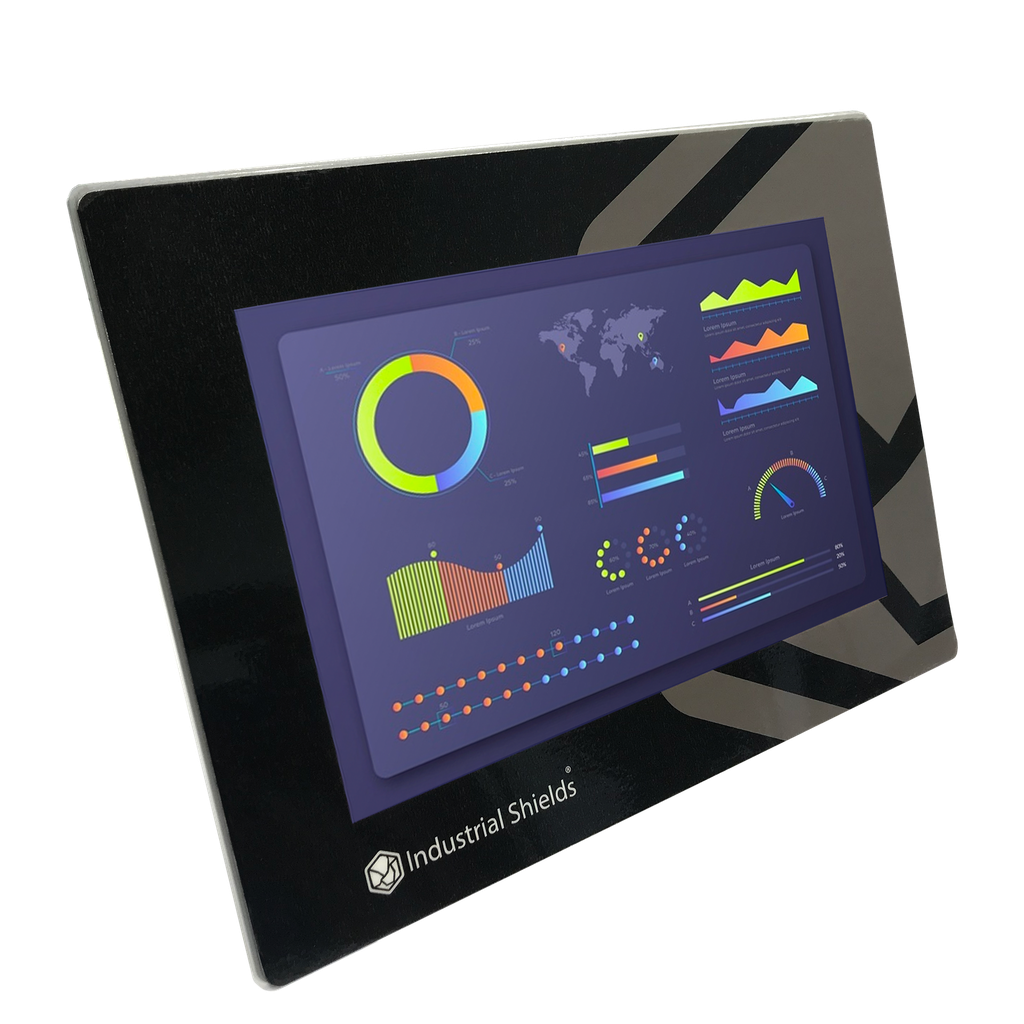

The TouchBerry Pi 10.1" is an industrial panel PC from Industrial Shields: a Raspberry Pi behind a 10.1-inch capacitive touchscreen (1280 x 800, 900 nits), with 10 I/O of its own (3 digital inputs, 2 analog inputs and 5 digital outputs), Gigabit Ethernet and a UPS for safe shutdown. It runs Linux, so the HMI can be a Node-RED dashboard, a Python application or a browser. It suits machine HMIs, monitoring stations and production line dashboards.
Reference (SKU) of the base configuration (Raspberry Pi 4B with 4 GB RAM, no extra board, IP20 front): 037103000000. Each configuration has its own reference.
You are viewing the FLEX version. Configurable: 4 or 8 GB RAM, IP65 front, plus LoRa, 4G or CAN.
See CORE Standard configuration, ready to shipTechnical specifications
| Display | 10.1" IPS TFT, 1280 x 800, 16:9, capacitive touch, 900 nits |
|---|---|
| Computer | Raspberry Pi 4, Broadcom BCM2711 quad core |
| RAM | CORE: 4 GB. FLEX: 4 or 8 GB |
| Operating system | Linux, preinstalled |
| Inputs | 3 digital, 5 to 24 Vdc. 2 analog, 0-10 V or 4-20 mA selected by jumper, 12-bit |
| Outputs | 5 digital, 12 to 24 Vdc, 250 mA each, 0.4 A total, not short-circuit protected |
| Communications | Gigabit Ethernet, 2 x USB 2.0, 2 x USB 3.0, I2C, SPI, one serial port (RS-485, RS-232 or TTL, chosen at order) |
| Reliability | UPS with supercapacitors for safe shutdown, real-time clock |
| Power supply | 12 to 24 Vdc with polarity protection, 28 W |
| Environment | 0 to 45 °C operating, 10 to 90 % humidity without condensation, shock 50 m/s² (IEC 60068-2-27) |
| Size and weight | 286 x 216 x 64 mm, 1673 g |
| Front protection | CORE: IP20. FLEX: IP20 or IP65 |
| Expansion | CORE: none. FLEX: one board, LoRa (EU, US or Asia band), 4G LTE-M/NB-IoT or CAN |
| Antenna | External antenna available on request |
Projects built with the TouchBerry Pi 10.1"
Field-tested examples with code from the PLC Solution Library.
- Kiosk mode for a Node-RED dashboard HMISee the example
- MQTT status LEDs on a Node-RED touch dashboardSee the example
- Node-RED admin login with a virtual keyboardSee the example
- CSV logging with a live history tableSee the example
Before you choose the TouchBerry Pi 10.1"
What software runs on the TouchBerry Pi 10.1"?
It ships with Linux preinstalled. Most HMIs are built as Node-RED dashboards, Python applications or a full-screen browser. Connect by SSH to 10.10.10.20 (eth0).
Can it control a machine without a PLC?
For simple tasks, yes: it has 3 digital inputs, 2 analog inputs and 5 digital outputs, driven from Bash or Python. For more I/O, pair it with a Raspberry PLC or an ESP32 PLC over Ethernet or RS-485.
Is the front IP65?
The CORE version has a standard IP20 front. The FLEX version offers an IP65 front for areas with dust or splashes.
Which serial port does it have?
One serial port, configured at the factory as RS-485, RS-232 or TTL. Tell us which one you need when you order.
What happens on a power failure?
The UPS with supercapacitors keeps it running long enough to shut Linux down cleanly, so the system and your data are not corrupted.
