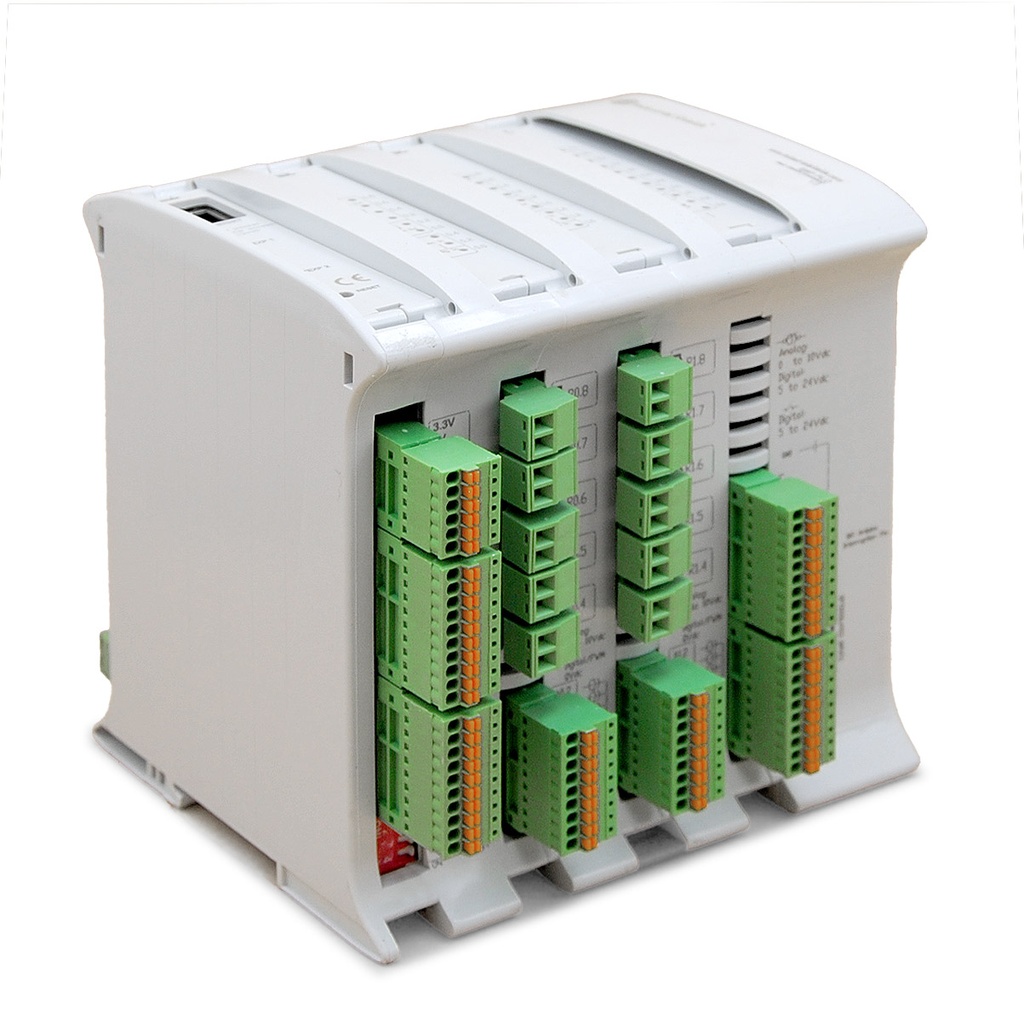

ESP32 PLC 42

https://www.industrialshields.com/web/image/product.template/2907/image_1920?unique=a2eaa6c

361.86 € 361.86 EUR 361.86 €

361.86 €

Not Available For Sale


  • # Device #
  • # CPU Type #
  • # Inputs #
  • Digital Inputs *See technical details
  • Interrupt Input
  • Analog Inputs (Included as a Digitlal Input)
  • # Outputs #
  • Digital Outputs *See technical details
  • # Ethernet #
  • # Wifi & Bluetooth LE #
  • ESP32PLC-AB-0
  • #CPU Type#
  • Communication board 1
  • Communication board 2
  • Communication board 3
  • ESP32PLC-AB-1
  • ESP32PLC-AB-2
  • ESP32PLC-AB-3
  • ESP32PLC-AB-4

This combination does not exist.


Do you need this product customized?
Check this out! Details

Reference :
034001000400
Share :

PLUS version include

Full/Half duplex RS485 port.

WiFi & Bluetooth BLE

µSD Socket

Work directly with the SD memory card.

MODBUS RTU

Possibility to use MODBUS RTU using RS485 port working as a hardware Serial. - RTC (Real-time clock available)

ESP32 PLC based details

Industrial Automation

Modular PLC
This is the first piece of equipment based on the Arduino technology designed for professional use. This PLC has 42 I/Os. It also contains several communication ports which provide more flexibility and control. The ESP32 family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…

Programming Software
This PLC can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free.

Instantaneous connection and coding
The ESP32 PLC is programmed through the USB ports. This PLC can also be programmed through the Ethernet port remotely. This offers immediate access to the program, maintain and control. Also, you can continuously monitor the status for all the variables, inputs, outputs, etc. It is compatible with the Ardbox and the Touchberry Pi with instantaneous connection.
Main Technical Specs.
# Device # PLC
# CPU Type # ESP32
Inputs
# Inputs # 21-30
Digital Inputs *See technical details 26
Interrupt Input 4
Analog Inputs (Included as a Digitlal Input) 12
Outputs
# Outputs # 11-20
Digital Outputs *See technical details 16
Communications
# Ethernet # Yes
# Wifi & Bluetooth LE # Yes
Uncategorized
Communication board 1 No Additional Com. Board 1 or 3G (SARA-G450) or 4G-NB IoT LTE (SARA-R412/R422) or LoRa (Europe-868MHz) or LoRa (USA-915MHz) or Dali or CAN or SIGFOX or GPS
Communication board 2 No Additional Com. Board 2 or 3G (Sara-G450) or 4G-NB IoT LTE (SARA-R412/R422) or LoRa (Europe-868MHz) or LoRa (USA-915MHz) or Dali or SIGFOX or GPS
ESP32PLC-AB-0 No additional board
#CPU Type# ESP32
Communication board 3 No Additional Com. Board 3
ESP32PLC-AB-1 No additional board
ESP32PLC-AB-2 No additional board
ESP32PLC-AB-3 No additional board
ESP32PLC-AB-4 No additional board
CE _ESP32_PLC_ Family.pdf
Download
2023_ESP32_PLC_DATASHEET.pdf
Download
2023_ESP32_PLC_UserGuide.pdf
Download
2023_ESP32_PLC_BROCHURE_ENG_V3.pdf
Download
2023_ESP32_PLC_CATALOGO_ESP_V4.pdf
Download
