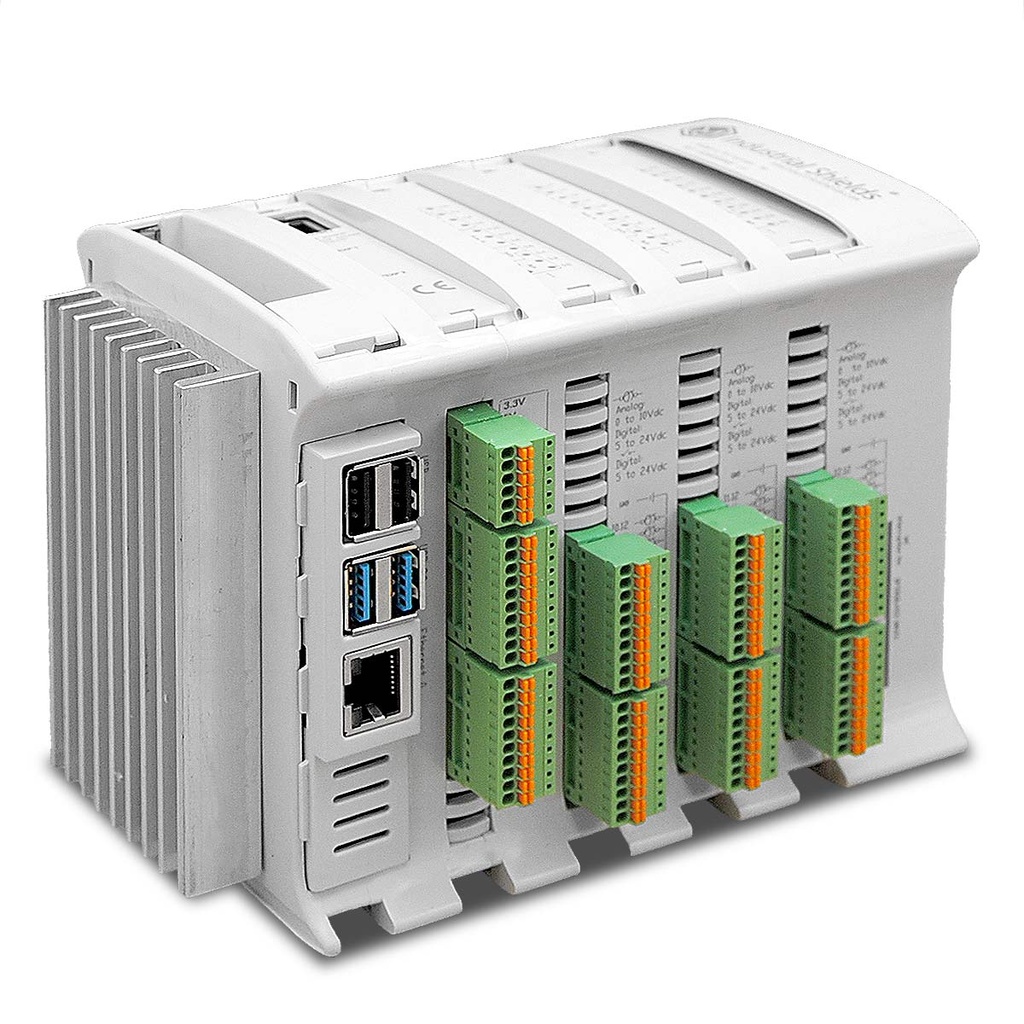

RASPBERRY PLC 58

https://www.industrialshields.com/web/image/product.template/2401/image_1920?unique=d44fe73

485.00 € 485.0 EUR 485.00 €

485.00 €

Not Available For Sale


  • # CPU Type #
  • # Device #
  • # Inputs #
  • # Outputs #
  • Ethernet
  • #CPU Type#
  • Communication board 1
  • Communication board 3

This combination does not exist.


Inputs

18x 10 bit Analog
21x Digital Optoisolated

Outputs

9x 10 bit Digital/Analog
15x Digital Optoisolated

Industrial Communications

I2C, RS232, RS485 SPI, ...

​​* GPRS PLC's  have one digital isolated input less than the Ethernet version

PLC with LoRa connectivity


LoRa (Long Range modulation) is a type of wireless technology. It uses a radio frequency network modulation such as AM, FM or PSK, but this one was created by a major radio chip manufacturer company called Semtech, now managed by LoRa Alliance. This modulation is called CSS (Chirp Spread Spectrum) and has been used in military operations for many years. The benefits of this kind of communication are that it can reach long distances (cover wide areas, usually kilometers) and has good resistance to interferences.


Main advantages


  • High tolerance interference
  • High Rx sensitivity (-168 dB)
  • Based on "chirp" modulation
  • Low consumption
  • Long range (10-20 km)
  • Low data transference (untill 255 bytes)
  • Point-to-Point connection
  • Low working frequencies: 868 MHz in Europe, 915 Mhz in America and 433 MHz in Asia. It uses the ISM (Industrial, Scientific, Medical) Band which is a non-licensed part of the frequency spectrum)


Possible applications


It is an ideal option when we need long range communication and IoT networks composed of sensors that are not connected to the electrical network due to their locations or main usage. For example, this communication is widely used in Smart Cities or low coverage areas such as agricultural applications or sensors/actuators networks which can take profit of its main characteristics. Because of its advantages and because it is an affordable and easy-to-use technology, it is being applied in many useful applications such as:


  • Smart Grid Management
  • Logistics and Fleet Management
  • Environmental Monitoring
  • Industrial IoT
  • Smart Cities
Do you want to know more about LoRa? Read the next post 👇


What is LoRaWAN      Work with LoraWAN and PLC Controller

PLC with DALI connectivity


The Digital Addressable Lighting Interface (DALI) is a communication protocol designed to control light and regulate lighting systems. It is based on an electronic system that allows you to talk bi-directionally with the connected devices, sending or receiving information.


It is used to control large lighting systems and regulating their use along with light, motion or timer sensors, allowing an automated control necessary for large buildings and companies interested in industrial automation.


The DALI protocol allows control of a total of 64 devices, interconnected by a DALI Bus. It is used in building automation to control groups of lighting or individual lights. The DALI protocol maximizes flexibility because you can adjust the lights through a software.


DALI controllers can also be used in complete building automation systems using protoccols such as MODBUS, BACnet or KNX.



Why use the DALI communication system in your industrial controller?


The main advantages over its competitors would be ease of planning and installation along with maximum flexibility when making modifications.


Slave devices can be added later and, moreover, do not need to be assigned to an initial configuration at the time of installation, as everything will be controlled digitally. As no special wiring or accessories are required, it makes the DALI protocol quick and easy to implement.


Thanks to the possibility of automatically adjunting the lights, it will be possible to meet time requirements according to energy peaks, sunshine hours or energy rates. The DALI protocol  allows the professional control of various environments and configurations such as:


  • Switching lights On and Off
  • System Automation
  • Light intensity regulation
  • Control of the system area


Main advantages


  • Energy savings and cost reduction:
    • Smart lighting usage decreases energy consumption and CO2 emissions.
    • Avoid over-lighting by adjusting timing and dimming of luminaires and city lights.
    • DALI Arduino controller increases savings by up to 50% per year through precise timing and power control of street lighting.


  • Maintenance cost reduction:
    • Detailed monitoring and analysis of lighting installation.
    • Simplifies maintenance program.


  • Security:
    • Ensure proper street lighting with DALI Arduino controller for reliable monitoring and control.


  • Better control and flexibility:
    • Adapt to changing lighting conditions.
    • Manage lighting according to specific needs with DALI Arduino PLC.

Do you want to know more about GPRS? Read the next post 👇


Work with DALI Library       Lighthing Protocol DALI

PLC with GSM/GPRS connectivity


PLC ideal for remote monitoring, data logging and remote access, diagnostics and control, using short text messages (SMS).


Adjust the messages to send from device with static (text) or dynamic (text and values) content.


According to the needs of your installation this is a perfect way of sending important information to the monitoring center.


You can send to pre-defined phone numbers. SMS messages sending can be triggered by change of binary input state, reaching alarm thresolds, marker state change, counters and clocks.


Remote control unit especially suitable for wireless monitoring & control, data logging and remote access.

Do you want to know more about GPRS? Read the next post 👇

GPRS Module

PLC with WiFi & BLE connectivity


Wi-Fi is one of the most important technological developments of the modern age. Similar to other wireless connection types, like Bluetooth, it's a radio transmission technolo-gy that's built upon a set of standards to allow high-speed and secure communications between a wide variety of digital devices, access points and hardware. It makes it possi-ble for Wi-Fi capable devices to access the internet without the need for restrictive wires. It can operate over short and long distances, be locked down and secured, or open and free. It's incredibly versatile and easy to use.


Bluetooth is a another wireless technology standard. Bluetooth was developed as a way to exchange data over a short range. Operates in the 2400-2483.5 MHz range within the ISM 2.4 GHz frequency band. Data is split into packets and exchange through one of 79 designed Bluetooth channels (each of which have 1 MHz in bandwidth).


Our M-Duino family incorporate the ESP32 WiFi/Bluetooth modul.


Do you want to know more about WiFi & BLE? Read the next post 👇

ESP32 WiFi & Bluetooth

PLC with CAN connectivity


CAN-Bus is a message-based protocol, designed originally for multiplex electrical wiring within automobiles to save on copper, but it can also be used in many other contexts. For each device, the data in a frame is transmitted sequentially but in such a way that if more than one device CAN communication is an essential technology in the world of automation and control.


In our PLCs based on platforms such as Arduino, Raspberry Pi, and ESP32, the integration of CAN technology takes connectivity and communication to a new level, providing an effective solution for a wide range of applications.


Main advantages:


  • Robustness and Reliability:
    • CAN technology ensures robust and interference-resistant communication, making it ideal for challenging environments.

  • Adjustable Speed:
    • Our PLCs allow you to adjust the CAN transmission speed according to the needs of your project.

  • Energy Efficiency:
    • With low power consumption, these PLCs are ideal for energy-constrained systems, such as battery-powered applications.

  • Data Integrity:
    • Integrated error detection mechanisms ensure the secure and accurate transmission of data. at the same time, the highest priority device can continue while the others back off. Frames are received by all devices, including by the transmitting device


Do you want to know more about CAN? Read the next post 👇

How to test CAN-Bus

PLC with Sigfox connectivity


The Sigfox technology has revolutionized automation and control by providing a highly effective connectivity solution. When integrated into our PLCs, based on platforms such as Arduino, Raspberry Pi, and ESP32, Sigfox technology opens new doors in communication, offering a reliable and versatile connectivity solution for various applications.


Main advantages


  • Global Coverage:
    • Sigfox is a low-power communication network that offers global coverage, facilitating communication anywhere in the world.

  • Energy Efficiency:
    • This technology is extremely energy-efficient, making it ideal for applications with energy constraints or battery-powered devices.

  • Long-Distance Connectivity:
    • Sigfox enables long-distance data transmission, which is essential for applications requiring communication across extensive geographical areas.

  • Simplified Connections:
    • Setting up and managing Sigfox devices is straightforward, reducing complexity in implementation.

  • Reliability:
    • Sigfox provides reliable communication, which is crucial for real-time critical applications and the monitoring of devices and systems.


Do you want to know more about Sigfox? Read the next post 👇

Sigfox and Industrial Controllers

PLC with 3G connectivity


3G technology has been an essential element in automation and control by providing an efficient and fast connectivity solution. When integrated into our PLCs, based on platforms like Arduino, Raspberry Pi, and ESP32, 3G enhances communication capabilities, offering a robust solution for a variety of applications.


Main advantages:


  • Data Speed:
    • 3G technology enables significantly fast data transmission speeds, which are essential for applications requiring real-time updates.

  • Wide Coverage:
    • 3G offers extensive geographical coverage, allowing communication in remote or on-the-move areas.

  • Continuous Connectivity:
    • 3G connection is stable and reliable, ensuring uninterrupted data transmission.

  • Compatibility:
    • 3G PLCs are compatible with various devices and applications, making them versatile and adaptable.

  • Security:
    • 3G technology provides a high level of data transmission security, crucial for critical applications.


Do you want to know more about 3G? Read the next post 👇

How to send SMS by PLC with 3G

PLC with 4G connectivity


The high speed and reliability of 4G technology have revolutionized the automation and control industry. When integrated into our PLCs, this technology significantly enhances communication capabilities, providing a robust solution for various applications.


Main advantages:


  • High Data Speed:
    • 4G technology enables ultra-fast data transmission speeds, essential for applications requiring immediate data transfer.

  • Wide Coverage:
    • This connection offers extensive geographical coverage, ensuring strong connectivity in urban and rural areas.

  • Stable Connection:
    • The 4G connection is stable and consistent, guaranteeing smooth data transmission.

  • Universal Compatibility:
    • This PLCs are compatible with a wide range of devices and applications, making them highly adaptable.

  • Advanced Security:
    • The technology incorporates advanced security features to protect data integrity in critical applications.


Do you want to know more about 4G? Read the next post 👇

How to send and receive SMS with 4G

PLC with GPS connectivity


In the world of automation and control, GPS communication has emerged as a fundamental resource. When integrated into our PLCs, GPS technology expands the possibilities for tracking and geolocation, providing a reliable solution for a wide range of applications.


Main advantages:


  • Positional Accuracy:
    • The GPS system provides location accuracy within several meters, enabling detailed and efficient tracking.

  • Quality Receivers:
    • Our PLCs incorporate high-quality GPS receivers to ensure a strong and precise signal reception.

  • Global Coverage:
    • Based on a constellation of satellites, GPS offers global coverage, allowing location services anywhere on the planet.

  • Real-Time Updates:
    • Positional data is updated in real-time, crucial for tracking and dynamic navigation applications.

  • User-Friendly Interface:
    • Our PLCs offer an intuitive user interface for easy system GPS configuration and monitoring.


Do you want to know more about GPS? Read the next post 👇

GPS using Arduino

PLC Raspberry Pi - Highlights

The PLC Raspberry Pi most important features. From improve speed process, use a wide range of connections and secure your data and your operating system.


UPS - UNINTERRUPTED POWER SUPPLY

Secure your operating system, your current processes and your data with the uninterrupted power supply that guarantees a clean shutdown in case of a power failure.



HIGH PROCESSING SPEED

The Raspberry Pi allow processing at high speed compared to most common PLCs.



MULTI-PROCESS

Work with applications in real time and allowing multiprocess.



LINUX or Raspberry Pi OS (previously called Raspbian)

All the power, flexibility and features of the Linux Operating System. Use Linux or Raspberry Pi OS (previously called Raspbian), the Debian based solution from Raspberry Pi.



MULTIPLE CONNECTIVITY, MULTIPLE OPTIONS

Thanks to the dual Ethernet ports, the dual RS-485, WiFI, Bluetooth and other options, you can connect to numerous devices and to use multiple protocols and communication ports.



RTC - REAL TIME CLOCK

A great number of applications require working with RTC. The PLC Raspberry Pi allows you the use of this feature with the internal clock that guarantees the current time and date to keep track of the right time.


Raspberry Pi PLC details

Industrial Automation with the high speed and power of the Raspberry Pi.

Modular PLC
This equipment based on the Raspberry Pi technology is designed for a professional use. This Controller has up to 21 Digital Inputs, 16 Analog Inputs, 14 Digital Outputs, 8 Analog Outputs and up to 6 Interrupt.

Communication
It also contains several communication ports, which provide great flexibility and control. The Raspberry PLC family offers double Ethernet port, double RS-485, WiFi, and Bluetooth.

Operating System
This Controller runs a Linux or a Raspberry Pi OS (previously called Raspbian), a Debian based operating system with all the flexibility and power that the Linux operating system offers.

Main Technical Specs.
# CPU Type # Raspberry Pi
# Device # PLC
Inputs
# Inputs # 31-40
Outputs
# Outputs # 21-30
Communications
Ethernet Yes
Uncategorized
#CPU Type# Raspberry PI 4B (2GB RAM) or Raspberry PI 4B (4GB RAM) or Raspberry PI 4B (8GB RAM)
Communication board 1 No Additional Com. Board 1 or GSM-GPRS (Sara-G450) or 4G (CAT 1 M1)-NB1 IoT LTE or LoRa (Europe) or LoRa (USA) or LoRa (Asia) or Dali or CAN or GPS or M-BUS MASTER or 4G (CAT 4)-NB IoT LTE
Communication board 3 No Additional Com. Board 3
RASPBERRY_PI_PLC_USERGUIDE.pdf
Download
CE_RASPBERRY_PI_PLC.pdf
Download
2023_RASPBERRY_PI_PLC_DATASHEET.pdf
Download
2023_CATALOGO_RASPBERRY_PI_PLC.pdf
Download
2023_BROCHURE_RASPBERRY_PI_PLC.pdf
Download
Accessory Products
