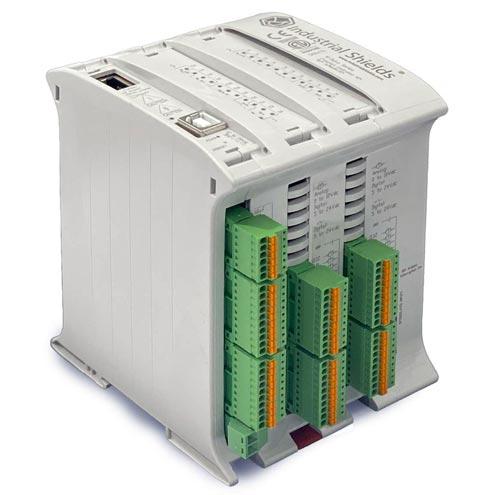

Arduino based PLC Controller for Industrial Applications by Industrial Shields
Odoo - Sample 1 for three columns

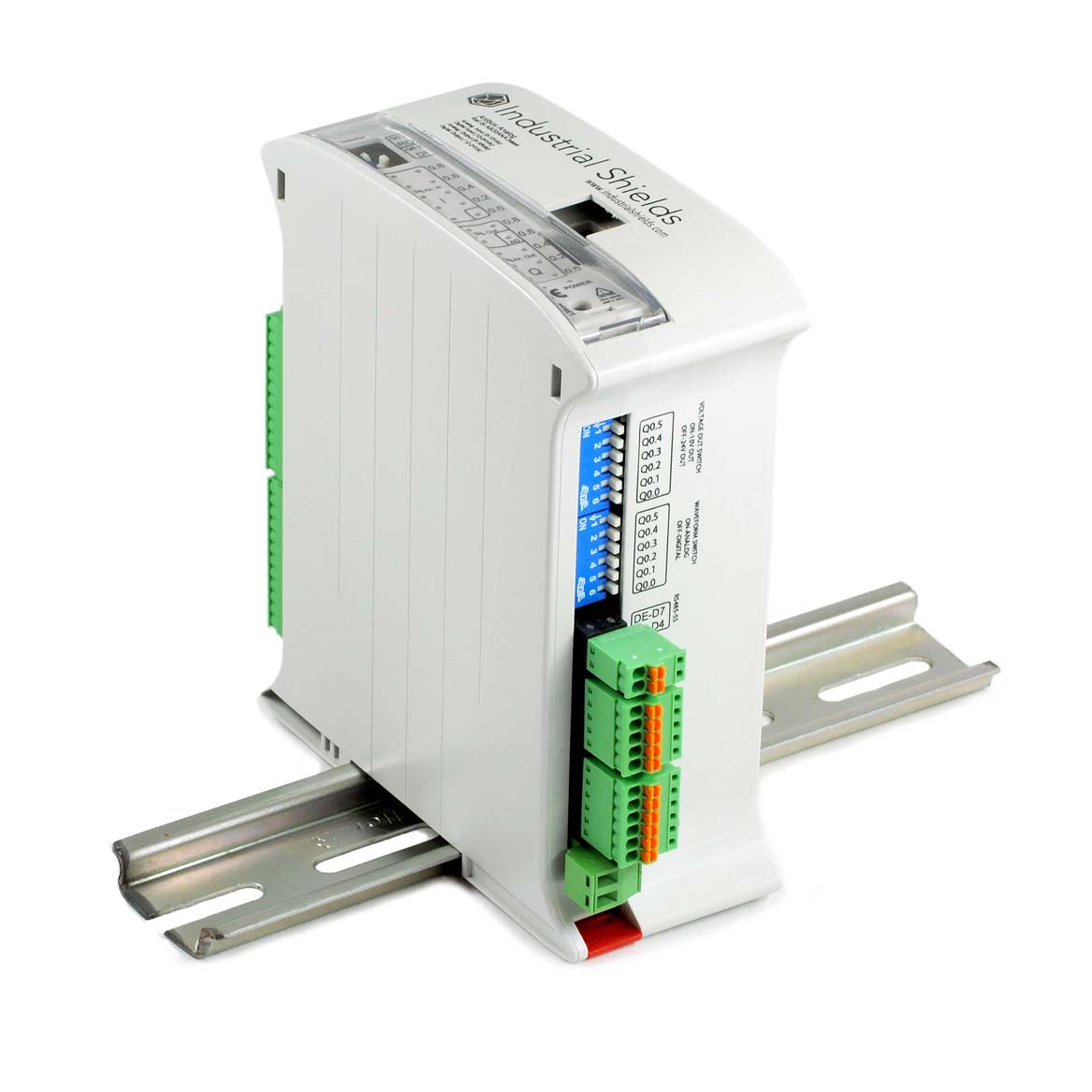

20 IO's

5 / 12 / 24 Vdc

Digital / Analog / Relay

From 16 to 20 I/O

USB, RS232, RS485, I2C, SPI

Up to 20 Inputs and Outputs

Arduino Leonardo Included (always original)

RS232, RS485, USB, SPI, I2C, Half-Full Duplex.  Flash memory: 32kB, SRAM: 2,5kB

Odoo - Sample 2 for three columns

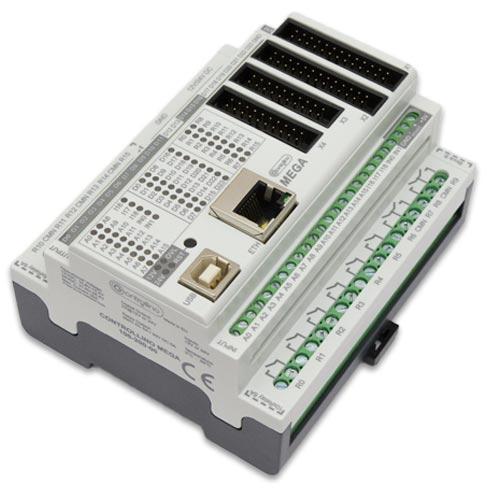

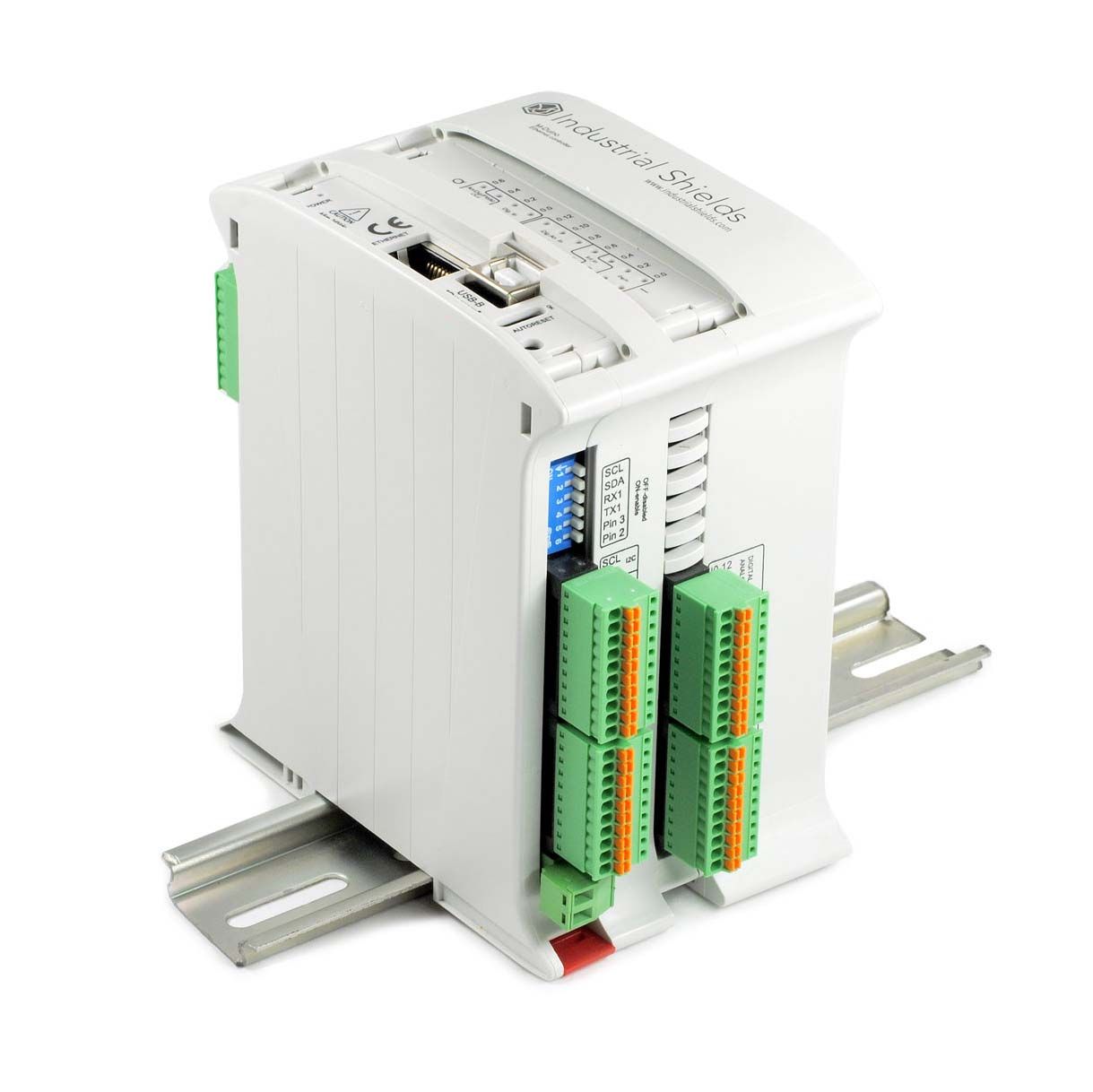

ETHERNET

5 / 12 / 24 Vdc

Digital / Analog / Relay

19 to 58 I/O

Ethernet, USB, RS232, RS485, I2C, SPI

Up to 58 Inputs and Outputs

Arduino Mega Included (always original)

Ethernet, RS232, RS485, USB, SPI, I2C, Half-Full Duplex

Odoo - Sample 3 for three columns

PANEL PC

Operating Systems Linux/Android

Ethernet Connection

I2C Communication

Windows IoT available

Chose your best configuration

Raspberry Pi, Banana Pi, Hummingboard.

10.1” Resistive Multitouch LVDS, 315 nits, 170ºviewing angle,

GET INTO INDUSTRY 4.0 AND INDUSTRIAL INTERNET OF THINGS WITH OUR PLC'S

ALL EQUIPPED WITH ORIGINAL ARDUINO BOARDS

Easy to program using Open Source and free platforms .

MULTIPLE SOFTWARE AVAILABLE TO PROGRAM ALL DEVICES

Software
Odoo image and text block

Industrial Internet of Things


100% compatible with Arduino or Raspberry Pi

 There are multple available platforms to program open source hardware. One of the main advantage to use industrial shields devices, it's free licenses on software platforms.

You can program our devices using text or graphical languages most of them without any license fee.

THE FIRST INDUSTRIAL HARDWARE BASED ON OPEN SOURCE.

Industrial Equipments based on Arduino and Raspberry PI

Communication through:

usb, serial port, RS232, RS485 and I2C communication for coding, data sending / receiving and multiple modules and sensors connection.


Can be programmed under Arduino platform

Programmed using Arduino IDE. Electromagnetic compatibility, CE, ROHS...


Easy setup and installation

It complies all the regulations for industrial automation.


IN COMPLIANCE WITH INDUSTRIAL REQUIREMENTS

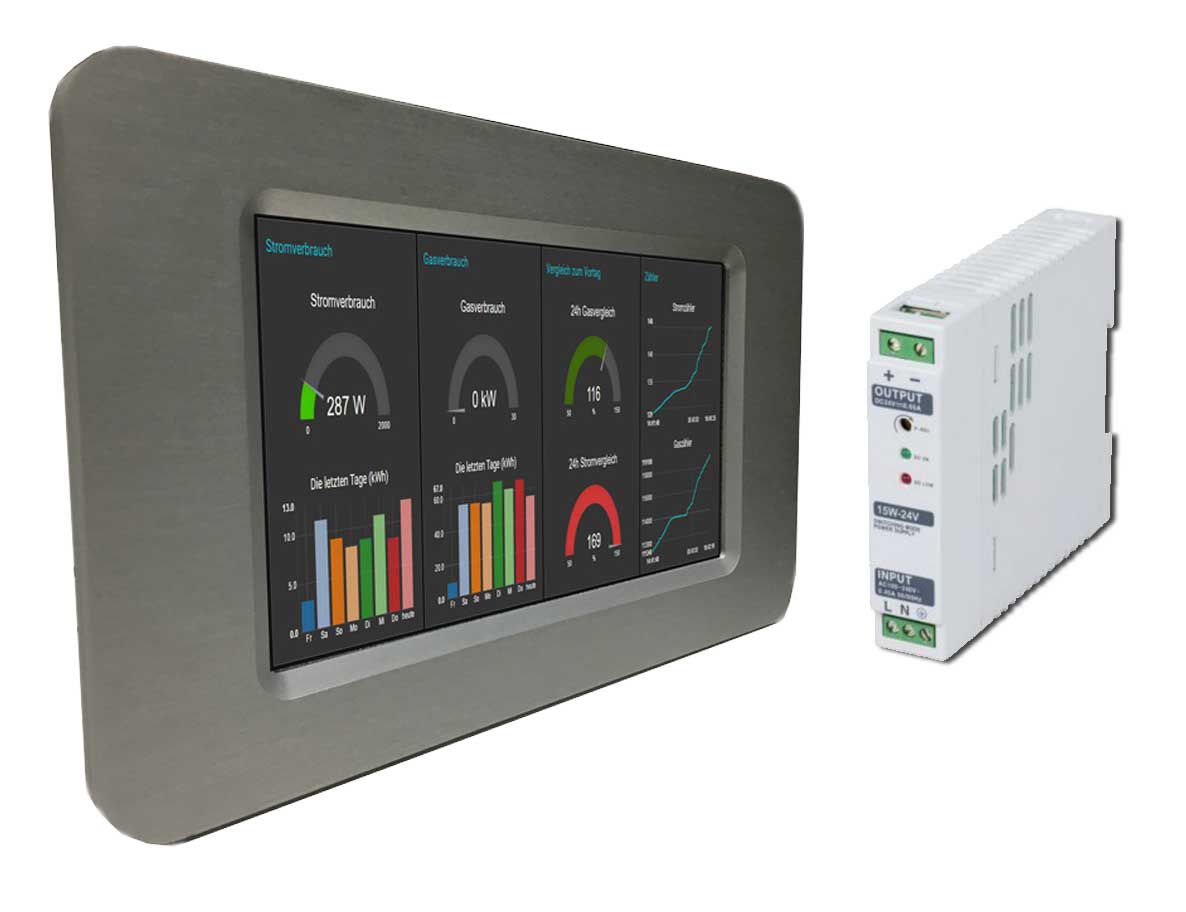

Panel PC based on Raspberry

Choose your OS

Linux and Android operating systems. Available Windows IoT.


Several GPIOS

From 7 to 10.1 inch touch screen.


Connectivity

Connect external memory card or copy your important data using usb.

INDUSTRY 4.0 AND IIOT DEVICES.

USING OPEN SOURCE HARDWARE ON INDUSTRIAL ENVIRONMENTS

Based on Open Source Technology

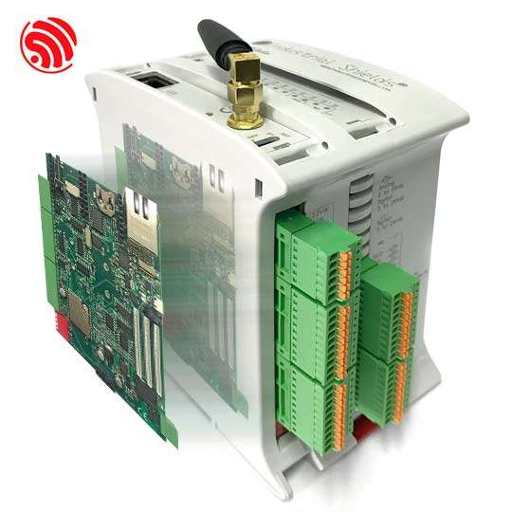

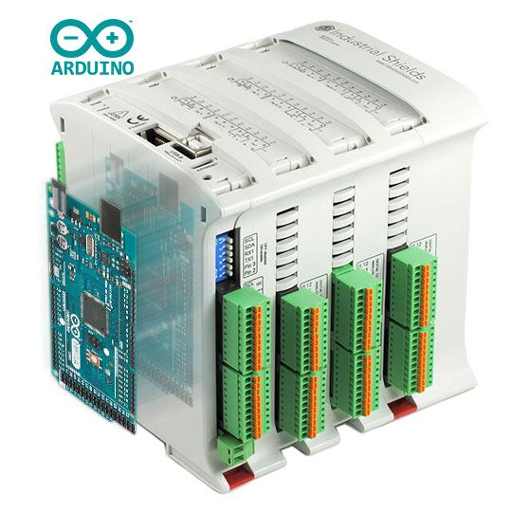

Industrial Arduino

Industrial Devices can be connected to the Industrial Shields family of products.

Industrial Shields is a leading manufacturer of technologically advanced industrial controlling products based on Open Source technology. Industrial Shields offers a full family of products for the automation and machinery.

With Open Source technology, using Industrial Shields, it is possible to get smart and flexible installations, Data acquisition can be sent to a database, and analyzed to find an efficient system. It is not necessary to pay licenses, and your efforts can be focused on the project. Those PLC’s can be expanded as your needs.
You can send data to the cloud and connect the automation line to the Industrial Internet of things.
