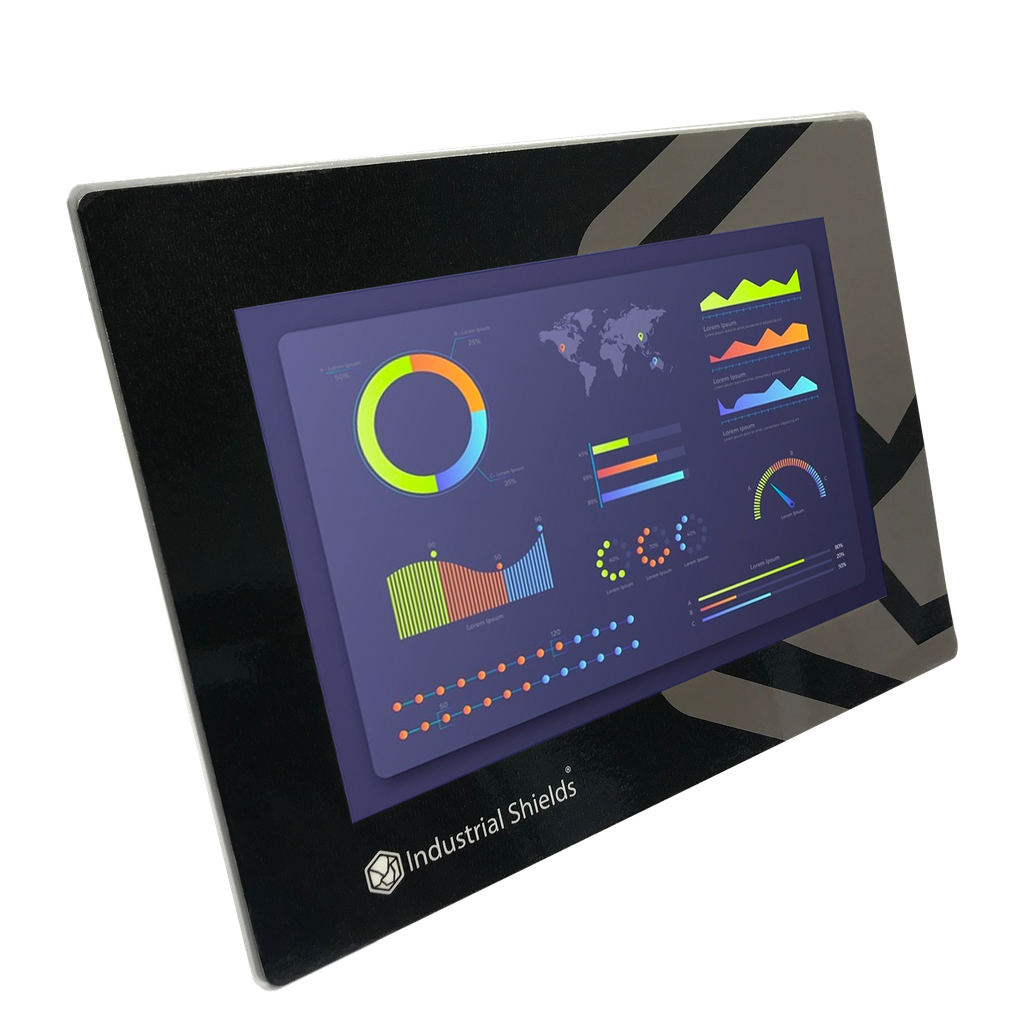

TouchBerry Pi Panel PC 10.1" CORE

10.1" industrial panel PC with Raspberry Pi, capacitive touchscreen and its own I/O, for HMIs and machine control running Linux.

Ships with 4 GB RAM, IP20 front and Linux preinstalled.

Screen
10.1", 1280 x 800, capacitive, 900 nits
I/O
3 digital in, 2 analog in (0-10 V or 4-20 mA), 5 digital out
Comms
Gigabit Ethernet, 4 x USB, serial port, I2C, SPI
Power
12 to 24 Vdc, UPS for safe shutdown
Specifications, documents and projectsPowered by Raspberry Pi
1,029.14 € 1,029.14 €

  • # CPU Type #
  • # Device #
Add to cart
Need IP65 or more RAM? See FLEX
Contact Us
# CPU Type #: Raspberry Pi
# Device #: Panel PC/HMI



TouchBerry Pi 10.1": industrial HMI panel PC with Raspberry Pi and built-in I/O

The TouchBerry Pi 10.1" is an industrial panel PC from Industrial Shields: a Raspberry Pi behind a 10.1-inch capacitive touchscreen (1280 x 800, 900 nits), with 10 I/O of its own (3 digital inputs, 2 analog inputs and 5 digital outputs), Gigabit Ethernet and a UPS for safe shutdown. It runs Linux, so the HMI can be a Node-RED dashboard, a Python application or a browser. It suits machine HMIs, monitoring stations and production line dashboards.

You are viewing the CORE version. Ships with 4 GB RAM, IP20 front and Linux preinstalled.

See FLEX Configure RAM, options and expansion

Documents

Datasheets

Certificates

Online

Brochures

Technical specifications

Display10.1" IPS TFT, 1280 x 800, 16:9, capacitive touch, 900 nits
ComputerRaspberry Pi 4, Broadcom BCM2711 quad core
RAMCORE: 4 GB. FLEX: 4 or 8 GB
Operating systemLinux, preinstalled
Inputs3 digital, 5 to 24 Vdc. 2 analog, 0-10 V or 4-20 mA selected by jumper, 12-bit
Outputs5 digital, 12 to 24 Vdc, 250 mA each, 0.4 A total, not short-circuit protected
CommunicationsGigabit Ethernet, 2 x USB 2.0, 2 x USB 3.0, I2C, SPI, one serial port (RS-485, RS-232 or TTL, chosen at order)
ReliabilityUPS with supercapacitors for safe shutdown, real-time clock
Power supply12 to 24 Vdc with polarity protection, 28 W
Environment0 to 45 °C operating, 10 to 90 % humidity without condensation, shock 50 m/s² (IEC 60068-2-27)
Size and weight286 x 216 x 64 mm, 1673 g
Front protectionCORE: IP20. FLEX: IP20 or IP65
ExpansionCORE: none. FLEX: one board, LoRa (EU, US or Asia band), 4G LTE-M/NB-IoT or CAN
AntennaExternal antenna available on request

Projects built with the TouchBerry Pi 10.1"

Field-tested examples with code from the PLC Solution Library.

See all projects in the PLC Solution Library

Before you choose the TouchBerry Pi 10.1"

What software runs on the TouchBerry Pi 10.1"?

It ships with Linux preinstalled. Most HMIs are built as Node-RED dashboards, Python applications or a full-screen browser. Connect by SSH to 10.10.10.20 (eth0).

Can it control a machine without a PLC?

For simple tasks, yes: it has 3 digital inputs, 2 analog inputs and 5 digital outputs, driven from Bash or Python. For more I/O, pair it with a Raspberry PLC or an ESP32 PLC over Ethernet or RS-485.

Is the front IP65?

The CORE version has a standard IP20 front. The FLEX version offers an IP65 front for areas with dust or splashes.

Which serial port does it have?

One serial port, configured at the factory as RS-485, RS-232 or TTL. Tell us which one you need when you order.

What happens on a power failure?

The UPS with supercapacitors keeps it running long enough to shut Linux down cleanly, so the system and your data are not corrupted.
