ESP32 PLC 14: compact Arduino-programmable PLC with Ethernet, Wi-Fi and RS-485
The ESP32 PLC 14 is an industrial controller from Industrial Shields built on the dual-core ESP32. It has 14 I/O (9 inputs and 5 outputs, including one 230 Vac relay), Ethernet, Wi-Fi, Bluetooth LE and an RS-485 port, and mounts on a DIN rail. It is programmed in C++ with the Arduino IDE and suits small machines, pumping stations and remote monitoring nodes where a compact, connected controller is enough.

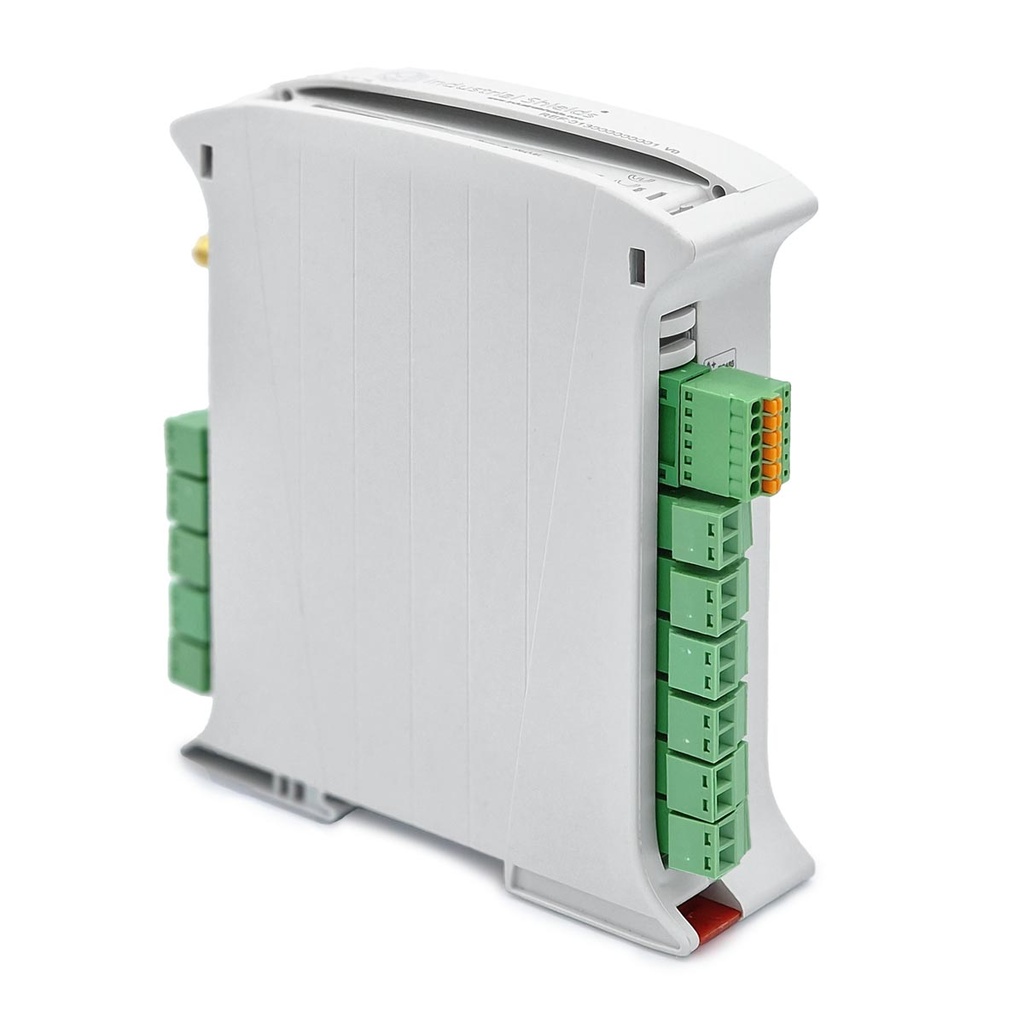

You are viewing the FLEX version: add one LoRa, 4G, CAN or RTC board.
See CORE Standard configuration, ready to shipDocuments
Datasheets
Brochures
Technical specifications
| Processor | ESP32 dual core, up to 240 MHz, 16 MB flash, 520 KB SRAM |
|---|---|
| Digital inputs | 7, optoisolated, 5 to 24 Vdc, up to 1 kHz |
| Analog inputs | 2, 0-10 V or 4-20 mA selected by software, 11-bit (also usable as digital) |
| Digital outputs | 4, optoisolated, 5 V by default or supply voltage (12 to 24 Vdc) set by software, 70 mA |
| Relay output | 1, 230 Vac 4 A / 24 Vdc 2 A (resistive load) |
| Ethernet | 1 x 10/100 Mbit, RJ45 |
| Wireless | Wi-Fi 2.4 GHz, Bluetooth LE |
| Serial and buses | RS-485 half duplex with 120 Ω termination, I2C |
| Programming | Arduino IDE with the Industrial Shields ESP32 boards package, micro USB or Ethernet |
| Power supply | 12 to 24 Vdc with polarity protection, 8 W rated |
| Dimensions and weight | 100 x 45 x 115 mm (H x W x D), 350 g max. |
| Mounting and protection | DIN rail TS35, IP20, inside a cabinet |
| Expansion | CORE: none. FLEX: one board, 4G LTE-M/NB-IoT (u-blox SARA-R412M), LoRa (EU, US or Asia band), CAN (MCP2515) or RTC |
Projects built with the ESP32 PLC 14
Field-tested examples with code from the PLC Solution Library.
- Water pump control with float switchesSee the example
- Remote OTA firmware updates over EthernetSee the example
- HTTP polling of several PLCs with Node-RED alert levelsSee the example
- FreeRTOS tasks with a LoRaWAN watchdog (FLEX with LoRa)See the example
Try it in a live simulator
The ESP32 PLC 14 is one of the controllers in these simulated systems.
A live packaging line with OEE, downtime causes, Telegram alarms and MQTT data.
Open the simulatorA town water network: pump station, tank, metered sectors, night-flow leak detection and alarms.
Open the simulatorBefore you choose the ESP32 PLC 14
How do I program the ESP32 PLC 14?
With the Arduino IDE (1.8.0 or later). Add the Industrial Shields boards URL in Preferences, install the "industrialshields-esp32" package and select the ESP32 PLC 14. Upload through micro USB, or remotely over Ethernet once the first program is loaded.
Can the analog inputs read 4-20 mA sensors?
Yes. The two analog inputs work in 0-10 V or 4-20 mA mode, selected by software, with 11-bit resolution.
What can the relay output switch?
Up to 4 A at 230 Vac or 2 A at 24 Vdc with a resistive load. For inductive loads such as contactor coils, add an RC snubber sized for the load.
Does it support LoRa, 4G or CAN?
Not in the CORE version, which ships without an expansion board. The FLEX version takes one board: LoRa (EU, US or Asia band), 4G LTE-M/NB-IoT, CAN or RTC.
What if I need more I/O?
The ESP32 PLC 21 has 13 inputs and 8 outputs with the same programming environment. Larger ESP32 PLC models reach up to 58 I/O.
