Arduino based PLC Controller for Industrial Applications by Industrial Shields

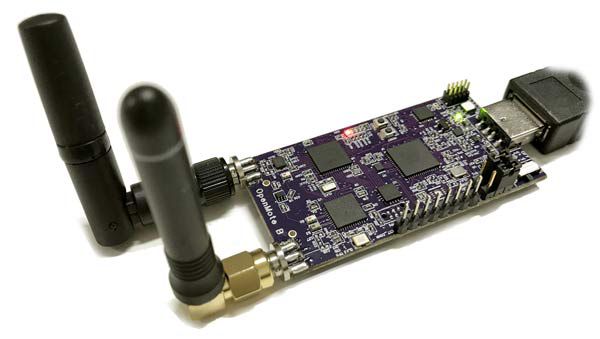

OPEN MOTE B - IoT

Ultra Low-power board to work with IoT applications.


It is the reference for the IETF 6TiSCG Working Group and is supported by the most relevant Open Source 6TiSCG implementation including the Contiki NG and OpenWSN projects.

  • Atmel AT86RF215 SubGHz Radio (868/915MHz)
  • Supports all IEEE802.15.4g modulations

  • VIEW PRODUCTS >>

Communication

2.4GHz SMA Antenna

SubGHz SMA Antenna

USB Interface

2xAA Battery placeholder

HIGH AUTONOMY

Less than 50µA Consumption

ACCESSORIES

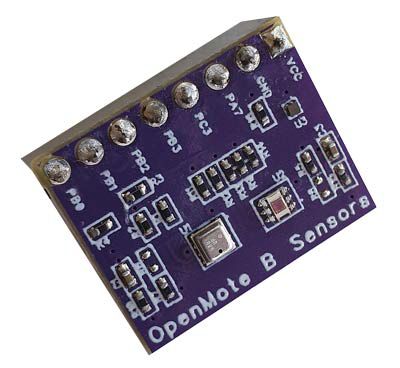

IoT OpenMote B's sensor board

· Humidity · Temperature · Pressure · Brightness meters

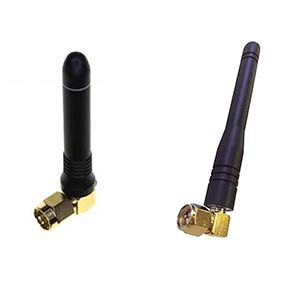

Antennas

. 850MHz, Indoor Antenna, Right Angle

. ANT-24G-WHP-SMA RF Solutions

Odoo text and image block
Odoo text and image block

Characteristics



Main characteristics

Ti CC2538 SoC (512kb Flash 32kb RAM)

Atmel AT86RF215 SubGHz Radio (868/915MHz)

Supports all IEEE802.15.4g modulations.

Simultaneous dual radio Operation


Programming:

Programming over BSL

Supported in Contiki and OpenWSN for IETF6TiSCH experimentation

JTAG and OCD compliant

USB Interface




Technical characteristics:

Temperature, relative humidity sensors

4x Leds indicators

2xAA Battery placeholder

2.4GHz SMA Antenna

SubGHz SMA Antena


NOTE:

* The consumption depends on the functionality and connectivity of the device.



OpenMote B is another Industrial Shields manufactured product

It is the Natural evolution of the Telos B. designed in Berkeley. It has more than 10 years of experience of "motes" to support The Open protocol stacks for the IoT.

View Open Mote Products
