How to communicate Raspberry Pi 3 B+ with a MAX485 module

Industrial Arduino M-Duino working with Raspberry Pi board

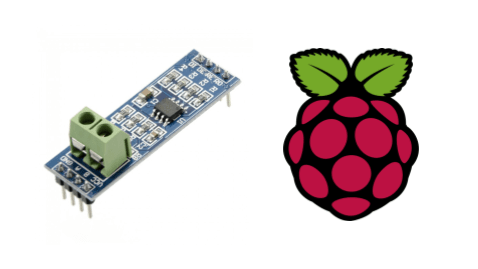

Raspberry Pi 3B+ with MAX485 module

Introduction

In this post, you will learn how to communicate a Raspberry Pi 3 B+ with an M-Duino by RS485 using a MAX 485 module.

 Requirements for communicate Raspberry Pi 4 B+ with a MAX485 module

MAX485 Module Pinout

MAX485 Module

On-board MAX485 chip is a low-power and slew-rate-limited transceiver used for RS485 communication. By adopting half-duplex communication to implement the function of converting TTL level information into RS485 level, it can reach a maximum transmission rate of 2.5 Mbps.

 Pinout

Depending on RE and DE connection, the module works as a receiver or transmitter. Connected to VCC, it transmits data and connected to GND it receives data.

It is a cheap module. Batches of 5 units can be found for less than 1‚ā¨.

 Connections


Raspberry Pi to MAX485

Raspberry Pi 3 B+ Pins
MAX485 Module Pins
UART_TXD
RX
UART_RXD
TX
GPIO 17
RE
GPIO 27
DE



MAX485 to M-Duino/Ardbox

MAX485 Module Pins
M-Duino / Ardbox Pin
VCC
3.3 V
BB-
AA+
GND
GND

The GPIO 17/27 digital pins used to establish the type of communication.
Receiver or transmitter mode.

Raspberry Pi 4 B+ Pinout

Raspberry Pi 3 B+ Pinout

Diagram

Diagram of Raspberry Pi 3 B+ with MAX485 module

Python Code Example

In this example of code, we send a character from the PLC to the Raspberry, print it, and answer to the PLC with the same character, which is an "echo". Note that in the case of receiving data, pins 17 and 27 are deactivated and activated in case of transmitting data.

#!/usr/bin/env python3

' IMPORTANT: remember to add "enable_uart=1" line to /boot/config.txt

from gpiozero import OutputDevice
from time import sleep
from serial import Serial

' RO  <-> GPIO15/RXD
' RE  <-> GPIO17
' DE  <-> GPIO27
' DI  <-> GPIO14/TXD

' VCC <-> 3.3V
' B   <-> RS-485 B
' A   <-> RS-485 A
' GND <-> GND

re = OutputDevice(17)
de = OutputDevice(27)

' enable reception mode
de.off()
re.off()

with Serial('/dev/ttyS0', 19200) as s:
	while True:
		' waits for a single character
		rx = s.read(1)

		' print the received character
		print("RX: {0}".format(rx))

		' wait some time before echoing
		sleep(0.1)

		' enable transmission mode
		de.on()
		re.on()

		' echo the received character
		s.write(rx)
		s.flush()

		' disable transmission mode
		de.off()
		re.off()
