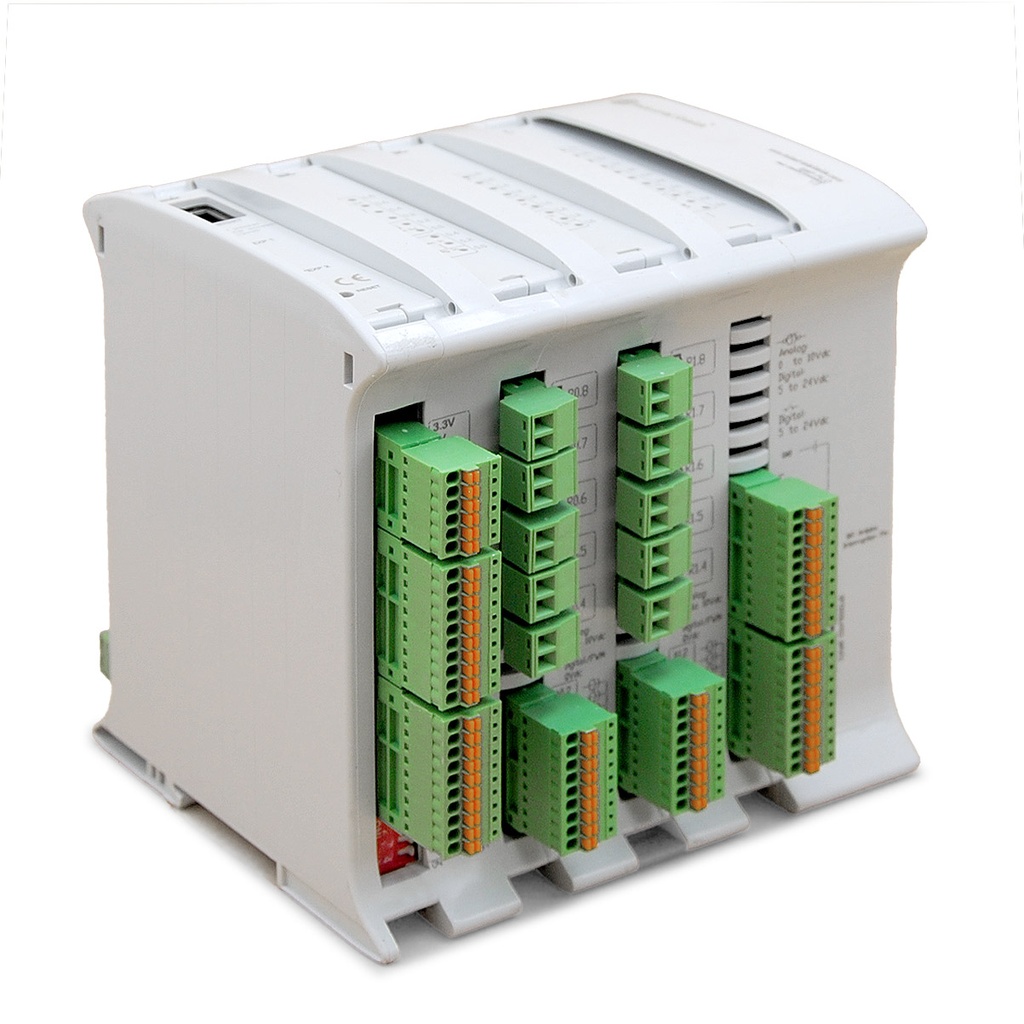

ESP32 PLC 42

361.86 € 361.86 EUR 361.86 €

361.86 €

Not Available For Sale

  • # CPU Type #
  • # Device #
  • # Inputs #
  • Digital Inputs *See technical details
  • Interrupt Input
  • Analog Inputs (Included as a Digitlal Input)
  • # Outputs #
  • Digital Outputs *See technical details
  • # Ethernet #
  • # LoRa #
  • # GPRS #
  • # Wifi & Bluetooth LE #
  • #CPU Type#
  • Communication board 1
  • Communication board 2
  • Communication board 3

This combination does not exist.

Do you need this product customized?
Check this out! Details

Reference :
Category :
Tags :


12x 10 bit Analog
30x Digital Optoisolated


16x Digital Outputs

Industrial Communications

I2C, RS232, RS485 SPI, ...

PLC with LoRa connectivity

LoRa (Long Range modulation) is a type of wireless technology. It uses a radio frequency network modulation such as AM, FM or PSK, but this one was created by a major radio chip manufacturer company called Semtech, now managed by LoRa Alliance. This modulation is called CSS (Chirp Spread Spectrum) and has been used in military operations for many years. The benefits of this kind of communication are that it can reach long distances (cover wide areas, usually kilometers) and has good resistance to interferences.

Main advantages

  • High tolerance interference
  • High Rx sensitivity (-168 dB)
  • Based on "chirp" modulation
  • Low consumption
  • Long range (10-20 km)
  • Low data transference (untill 255 bytes)
  • Point-to-Point connection
  • Low working frequencies: 868 MHz in Europe, 915 Mhz in America and 433 MHz in Asia. It uses the ISM (Industrial, Scientific, Medical) Band which is a non-licensed part of the frequency spectrum)

Possible applications

It is an ideal option when we need long range communication and IoT networks composed of sensors that are not connected to the electrical network due to their locations or main usage. For example, this communication is widely used in Smart Cities or low coverage areas such as agricultural applications or sensors/actuators networks which can take profit of its main characteristics. Because of its advantages and because it is an affordable and easy-to-use technology, it is being applied in many useful applications such as:

  • Smart Grid Management
  • Logistics and Fleet Management
  • Environmental Monitoring
  • Industrial IoT
  • Smart Cities
Do you want to know more about LoRa? Read the next post 👇

What is LoRaWAN      Work with LoraWAN and PLC Controller

PLC with DALI connectivity

The Digital Addressable Lighting Interface (DALI) is a communication protocol designed to control light and regulate lighting systems. It is based on an electronic system that allows you to talk bi-directionally with the connected devices, sending or receiving information.

It is used to control large lighting systems and regulating their use along with light, motion or timer sensors, allowing an automated control necessary for large buildings and companies interested in industrial automation.

The DALI protocol allows control of a total of 64 devices, interconnected by a DALI Bus. It is used in building automation to control groups of lighting or individual lights. The DALI protocol maximizes flexibility because you can adjust the lights through a software.

DALI controllers can also be used in complete building automation systems using protoccols such as MODBUS, BACnet or KNX.

Why use the DALI communication system in your industrial controller?

The main advantages over its competitors would be ease of planning and installation along with maximum flexibility when making modifications.

Slave devices can be added later and, moreover, do not need to be assigned to an initial configuration at the time of installation, as everything will be controlled digitally. As no special wiring or accessories are required, it makes the DALI protocol quick and easy to implement.

Thanks to the possibility of automatically adjunting the lights, it will be possible to meet time requirements according to energy peaks, sunshine hours or energy rates. The DALI protocol  allows the professional control of various environments and configurations such as:

  • Switching lights On and Off
  • System Automation
  • Light intensity regulation
  • Control of the system area

Main advantages

  • Energy savings and cost reduction:
    • Smart lighting usage decreases energy consumption and CO2 emissions.
    • Avoid over-lighting by adjusting timing and dimming of luminaires and city lights.
    • DALI Arduino controller increases savings by up to 50% per year through precise timing and power control of street lighting.

  • Maintenance cost reduction:
    • Detailed monitoring and analysis of lighting installation.
    • Simplifies maintenance program.

  • Security:
    • Ensure proper street lighting with DALI Arduino controller for reliable monitoring and control.

  • Better control and flexibility:
    • Adapt to changing lighting conditions.
    • Manage lighting according to specific needs with DALI Arduino PLC.

Do you want to know more about GPRS? Read the next post 👇

Work with DALI Library       Lighthing Protocol DALI

PLC with GSM/GPRS connectivity

PLC ideal for remote monitoring, data logging and remote access, diagnostics and control, using short text messages (SMS).

Adjust the messages to send from device with static (text) or dynamic (text and values) content.

According to the needs of your installation this is a perfect way of sending important information to the monitoring center.

You can send to pre-defined phone numbers. SMS messages sending can be triggered by change of binary input state, reaching alarm thresolds, marker state change, counters and clocks.

Remote control unit especially suitable for wireless monitoring & control, data logging and remote access.

Do you want to know more about GPRS? Read the next post 👇

GPRS Module

PLC with CAN connectivity

CAN-Bus is a message-based protocol, designed originally for multiplex electrical wiring within automobiles to save on copper, but it can also be used in many other contexts. For each device, the data in a frame is transmitted sequentially but in such a way that if more than one device CAN communication is an essential technology in the world of automation and control.

In our PLCs based on platforms such as Arduino, Raspberry Pi, and ESP32, the integration of CAN technology takes connectivity and communication to a new level, providing an effective solution for a wide range of applications.

Main advantages:

  • Robustness and Reliability:
    • CAN technology ensures robust and interference-resistant communication, making it ideal for challenging environments.

  • Adjustable Speed:
    • Our PLCs allow you to adjust the CAN transmission speed according to the needs of your project.

  • Energy Efficiency:
    • With low power consumption, these PLCs are ideal for energy-constrained systems, such as battery-powered applications.

  • Data Integrity:
    • Integrated error detection mechanisms ensure the secure and accurate transmission of data. at the same time, the highest priority device can continue while the others back off. Frames are received by all devices, including by the transmitting device

Do you want to know more about CAN? Read the next post 👇

How to test CAN-Bus

PLC with Sigfox connectivity

The Sigfox technology has revolutionized automation and control by providing a highly effective connectivity solution. When integrated into our PLCs, based on platforms such as Arduino, Raspberry Pi, and ESP32, Sigfox technology opens new doors in communication, offering a reliable and versatile connectivity solution for various applications.

Main advantages

  • Global Coverage:
    • Sigfox is a low-power communication network that offers global coverage, facilitating communication anywhere in the world.

  • Energy Efficiency:
    • This technology is extremely energy-efficient, making it ideal for applications with energy constraints or battery-powered devices.

  • Long-Distance Connectivity:
    • Sigfox enables long-distance data transmission, which is essential for applications requiring communication across extensive geographical areas.

  • Simplified Connections:
    • Setting up and managing Sigfox devices is straightforward, reducing complexity in implementation.

  • Reliability:
    • Sigfox provides reliable communication, which is crucial for real-time critical applications and the monitoring of devices and systems.

Do you want to know more about Sigfox? Read the next post 👇

Sigfox and Industrial Controllers

PLC with 3G connectivity

3G technology has been an essential element in automation and control by providing an efficient and fast connectivity solution. When integrated into our PLCs, based on platforms like Arduino, Raspberry Pi, and ESP32, 3G enhances communication capabilities, offering a robust solution for a variety of applications.

Main advantages:

  • Data Speed:
    • 3G technology enables significantly fast data transmission speeds, which are essential for applications requiring real-time updates.

  • Wide Coverage:
    • 3G offers extensive geographical coverage, allowing communication in remote or on-the-move areas.

  • Continuous Connectivity:
    • 3G connection is stable and reliable, ensuring uninterrupted data transmission.

  • Compatibility:
    • 3G PLCs are compatible with various devices and applications, making them versatile and adaptable.

  • Security:
    • 3G technology provides a high level of data transmission security, crucial for critical applications.

Do you want to know more about 3G? Read the next post 👇

How to send SMS by PLC with 3G

PLC with 4G connectivity

The high speed and reliability of 4G technology have revolutionized the automation and control industry. When integrated into our PLCs, this technology significantly enhances communication capabilities, providing a robust solution for various applications.

Main advantages:

  • High Data Speed:
    • 4G technology enables ultra-fast data transmission speeds, essential for applications requiring immediate data transfer.

  • Wide Coverage:
    • This connection offers extensive geographical coverage, ensuring strong connectivity in urban and rural areas.

  • Stable Connection:
    • The 4G connection is stable and consistent, guaranteeing smooth data transmission.

  • Universal Compatibility:
    • This PLCs are compatible with a wide range of devices and applications, making them highly adaptable.

  • Advanced Security:
    • The technology incorporates advanced security features to protect data integrity in critical applications.

Do you want to know more about 4G? Read the next post 👇

How to send and receive SMS with 4G

PLC with GPS connectivity

In the world of automation and control, GPS communication has emerged as a fundamental resource. When integrated into our PLCs, GPS technology expands the possibilities for tracking and geolocation, providing a reliable solution for a wide range of applications.

Main advantages:

  • Positional Accuracy:
    • The GPS system provides location accuracy within several meters, enabling detailed and efficient tracking.

  • Quality Receivers:
    • Our PLCs incorporate high-quality GPS receivers to ensure a strong and precise signal reception.

  • Global Coverage:
    • Based on a constellation of satellites, GPS offers global coverage, allowing location services anywhere on the planet.

  • Real-Time Updates:
    • Positional data is updated in real-time, crucial for tracking and dynamic navigation applications.

  • User-Friendly Interface:
    • Our PLCs offer an intuitive user interface for easy system GPS configuration and monitoring.

Do you want to know more about GPS? Read the next post 👇

GPS using Arduino

ESP32 PLC based details

Industrial Automation

Modular Controller
This is the first piece of equipment based on the Arduino technology designed for professional use. This PLC has 42 I/Os. It also contains several communication ports which provide more flexibility and control. The ESP32 family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…

Programming Software
This Controller can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free.

Instantaneous connection and coding
The ESP32 PLC is programmed through the USB ports. This Controller can also be programmed through the Ethernet port remotely. This offers immediate access to the program, maintain and control. Also, you can continuously monitor the status for all the variables, inputs, outputs, etc. It is compatible with the Ardbox and the Touchberry Pi with instantaneous connection.
Main Technical Specs.
# CPU Type # ESP32
# Device # PLC
# Inputs # 21-30
Digital Inputs *See technical details 26
Interrupt Input 4
Analog Inputs (Included as a Digitlal Input) 12
# Outputs # 11-20
Digital Outputs *See technical details 16
# Ethernet # Yes
# LoRa # Yes
# GPRS # Yes
# Wifi & Bluetooth LE # Yes
Communication board 1 No Additional Com. Board 1 or GSM-GPRS (Sara-G450) or 4G (CAT 1 M1)-NB1 IoT LTE or LoRa (Europe) or LoRa (USA) or LoRa (Asia) or Dali or CAN or SIGFOX (EU) or GPS or 4G (CAT 4)-NB IoT LTE
Communication board 2 No Additional Com. Board 2 or GSM-GPRS (Sara-G450) or 4G (CAT 1)-NB IoT LTE or LoRa (Asia) or LoRa (Europe) or LoRa (USA) or Dali or SIGFOX (EU) or GPS
#CPU Type# ESP32
Communication board 3 No Additional Com. Board 3
CE _ESP32_PLC_ Family.pdf
