moduleX: modular remote I/O over Modbus RTU
Add digital and analog I/O to any PLC, HMI or SCADA over RS-485. Start with the I/O you need and add modules as the project grows.
- Works with any controller: Modbus RTU slave over RS-485, 19200 to 115200 bps.
- Scales with the project: up to 16 I/O modules per master, 10 ms refresh.
- Built for the cabinet: 24 Vdc, DIN rail, IP20, modules detected automatically.
How moduleX remote I/O works
One master on the RS-485 bus and the I/O modules you need next to it.
1. Master

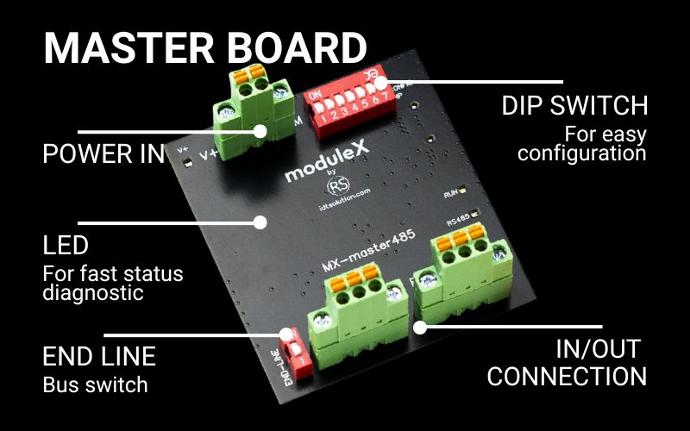

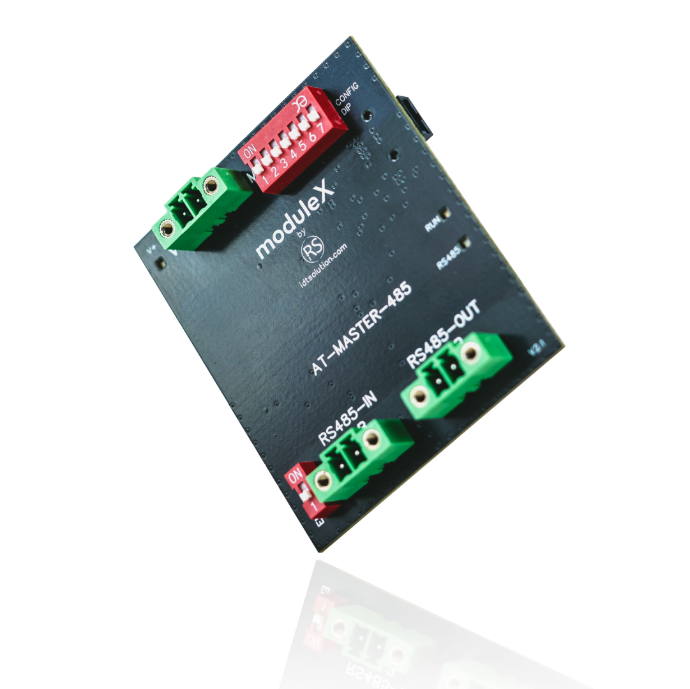

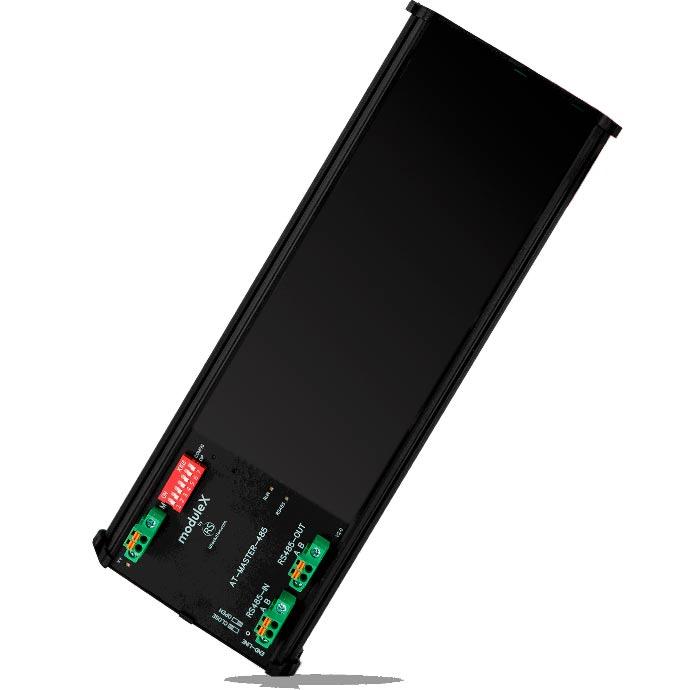

Master module
Talks Modbus RTU over RS-485 with your PLC, HMI or SCADA and manages up to 16 I/O modules.
3. Outputs

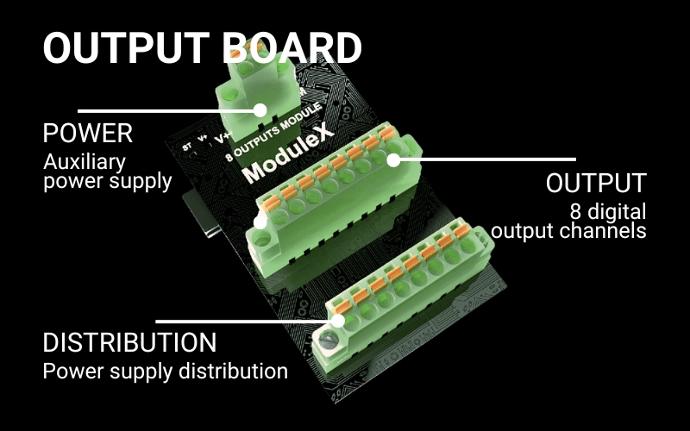

Output modules

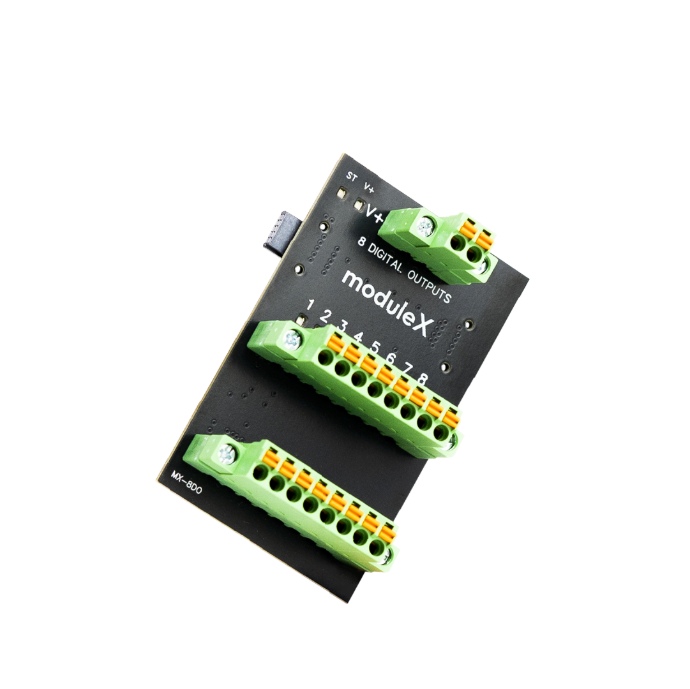

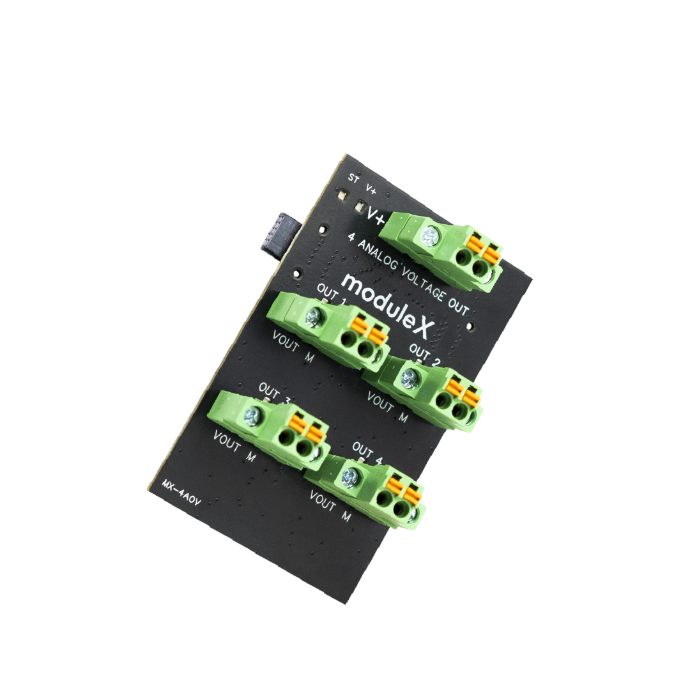

MX-8DO with 8 digital outputs and MX-4AOV with 4 analog outputs.
moduleX packs ready to ship
Each CORE pack includes the master and the I/O modules, ready to mount on the DIN rail.
Mixed

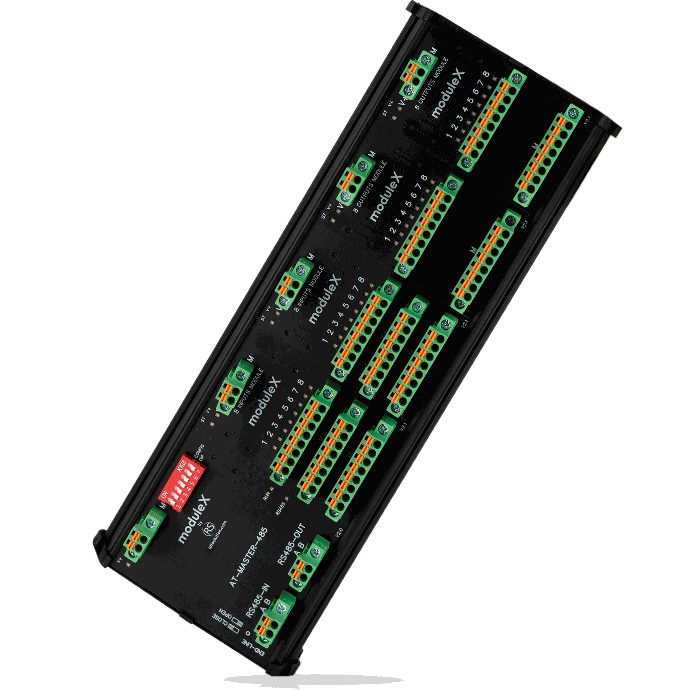

moduleX IOs CORE
8 digital inputs, 8 digital outputs, 4 analog inputs and 4 analog outputs.
Need another mix? Configure your moduleX with the modules you choose.
moduleX: frequently asked questions
Which PLCs can read moduleX?
Any controller that works as a Modbus RTU master over RS-485: Industrial Shields PLCs, third-party PLCs, HMIs and SCADA systems.
How many I/O modules can one master handle?
Up to 16 I/O modules per master, with a refresh time of 10 ms.
Which moduleX pack should I start with?
With a CORE pack: 8 digital I/O, 4 analog I/O or 24 mixed I/O, ready to ship. If you need another mix, configure the modules yourself.
Talk to an engineer
Tell us how many signals you need and which controller will read them. An Industrial Shields engineer will answer with the right moduleX setup.
