Control of a parking area with PLC Arduino and RFID sensor

Discover how

M-Duino, a PLC Arduino for control of parking area

Control your installations through Open Source Platforms

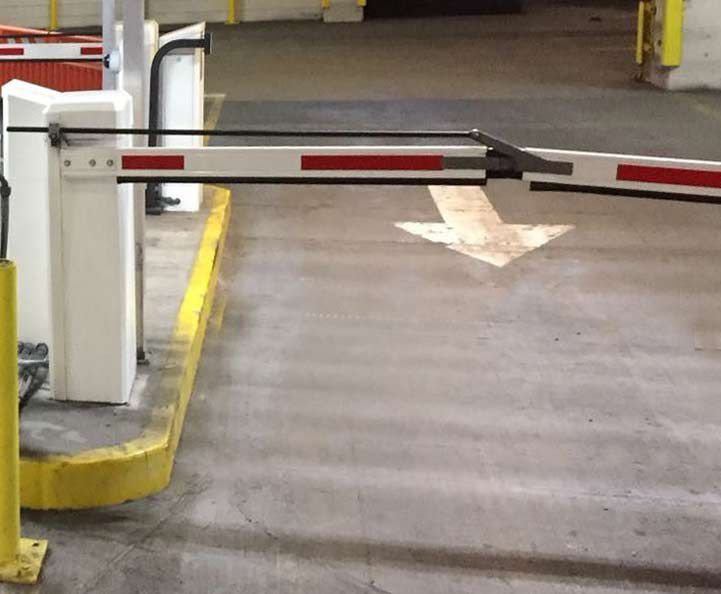

This project allows access control in a parking area, and automates the opening of the gate through a system which uses an RFID sensor connected to an industrial PLC by Industrial Shields.

Each user owns a unique card which contains the access data. A local database is stored in the SD memory card and it contains all the user access references. The system also monitors all the card reading process and allows the users to have knowledge about the process.

Summary

Using this installation, each user will have a personalized card with a unique reference. All the references will be stored in an external server.

Each time that the database is modified, the industrial controller will update it on its memory card. When RFID sensor detects a registered reference, it activates the motor until the gate is fully open.

Goal

Our customer wants to control the access to the parking of his company using Open Source technology with a single controller Arduino that has the knowledge of all the registered users. It can also be remotely modified, acts on the gate and allows monitoring the full process.

Control and automation of parking with PLC Arduino

Choose the product in order to satisfy your technical needs

Take a look at our product range.

The efficient way to have Monitoring Installations is using Industrial Shields devices.

You have the control of your business.

Do you want to receive more information about RFID, PLC and parking management?

Open Source technology allows you to develop your Monitor and Control applications.

Just fill the form and we will send you several examples about how to use Open Source based devices on your projects.
