How to connect 7.5" E-Paper Display & ESP32
Display Applications using Arduino IDE
25 June, 2021 by
How to connect 7.5" E-Paper Display & ESP32
Boot & Work Corp. S.L., Fernandez Queralt Martinez


Introduction

E-Paper, or electronic papers, are display devices that copy the appearance of ordinary ink on paper. Unlike conventional flat panel displays that emit light, electronic paper displays reflect light like paper. This may make them more comfortable to read and provide a wider viewing angle than most light-emitting displays.

In this post, we are going to download the GxEPD Library, wire the E-Paper with the ESP32, and finally test some examples for industrial automation using the Arduino IDE!

Related links

How to

Run a small web server and Industrial ESP32 PLC using SPIFF

Read

How to

Control an ESP32 industrial controller via Bluetooth

Read

How to

Make a partition scheme in ESP32 industrial PLC

Read

How to

Work with the 5GHz Wi-Fi module of the industrial ESP32

Read

How to

Program the 10 I/Os ESP32 industrial PLC via Wi-Fi

Read

How to

Use the ESP32 industrial PLC Dual Core

Read

Requirements

  • 7.5 inch e-Paper Display (800Ă—400 resolution, SPI interface, B/W)

  • ESP32 devkit board

  • WaveShare e-Paper adapter

  • WaveShare e-Paper Driver HAT with connector for SPI interface

  • USB micro to program ESP32

  • Arduino IDE

Explanation

GxEPD

In this tutorial, we are going to download the GxEPD Library, whose author and maintainer is Jean-Marc Zingg. The GxEPD Library is a simple E-Paper display library with a common base class and separate IO class for Arduino.

  • For SPI e-paper displays from Dalian Good Display

  • SPI e-paper boards from Waveshare

  • GxEPD2 is better suited for new users or new projects!

So, first of all, click here to get the library from GitHub as follows:

GxEPD explanation - How to connect 7.5" E-Paper Display & ESP32

Arduino IDE

After the library is downloaded, there are at least two ways of installing the GxEPD Library.

1. Open the Arduino IDE, click on the top menu Sketch >> Include Library >> Add .ZIP Library... and import the GxEPD library you just downloaded.

2. Open the Arduino IDE, go to Sketch >> Include Library >> Manage Libraries >> type "GxEPD" >> Install.

Once the Library is installed, you will be able to test some examples from the Library for industrial control!

If we go to File >> Examples >> GxEPD and click on the first GxEPD-Example, a new window will be displayed. If you take a look at the example, you will see that there is a different mapping for some hardware. Just find out your board and wire it to your e-Paper from WaveShare. In our case, we are going to do it like this line of the example:


Mapping suggestion ESP32 - Arduino IDE - How to connect 7.5" E-Paper Display & ESP32

7.5" e-Paper and ESP32 pinout


7.5" e-paper and ESP32 Pinout - How to connect 7.5" E-Paper Display & ESP32

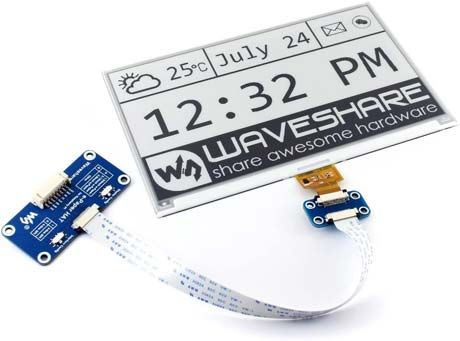

7.5inch e-Paper Display

Under the mapping section of the example in the Arduino IDE, you will see an include section. You must uncomment the one that fits your e-Paper screen. In our case, we are going to remove the // to uncomment the include:

#include <GxGDEW075T7/GxGDEW075T7.h>      // 7.5" b/w 800x480


After that, you will be ready to test the example!:
Go to Tools >> Board >> Select the ESP32.
And Tools >> Port >> Select the port where you connect your ESP32.

Upload your sketch and enjoy the testing!

It is your turn!

Now it is your turn! Try with some other examples from the GxEPD library, and get the most out of it!
