INTRODUCTION
The Write Multiple Coils Modbus RTU function (Modbus Function Code: 15), is used to force each coil in a sequence of coils to either ON or OFF in a remote device
In this blog post, we are going to write multiple coils from the PLC set as a master, to the remote PLC set as a slave!
MODBUS RTU
To know more about Modbus RTU and how the library works, please visit the following blog post:
HARDWARE REQUIREMENTS
- 2x M-Duino PLC >
- Power Supply >
- B type cable , to program the Arduino based PLC
- Two twisted pair cables, for RS485.
SOFTWARE REQUIREMENTS
CONNECTIONS
Now, in order to set a Modbus RTU communication, we are going to do the following:
1. Power the PLC between 12 and 24V.

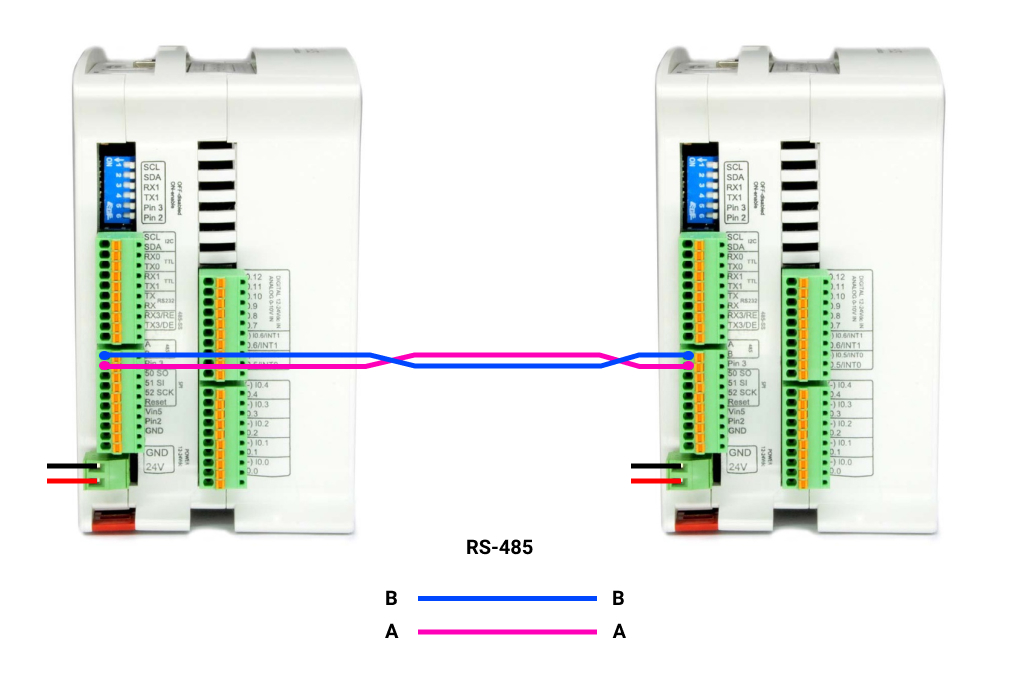

2. Wire the cables through RS-485. This is based on a twisted pair cables, on cable from A+ to A+, and the other one from B- to B-.
3. Set the red switch to the Half-Duplex: HD
MODBUS RTU MASTER WRITE MULTIPLE COILS
In order to set an M-Duino as a master and the other one as a slave, we will have to program both to execute each code. So, in order to program the master, open up a new file of Arduino IDE, and paste the code below:
/* Copyright (c) 2018 Boot&Work Corp., S.L. All rights reserved This program is free software: you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details. You should have received a copy of the GNU Lesser General Public License along with this program. If not, see <http://www.gnu.org/licenses/>. */ #include <ModbusRTUMaster.h> // Define the ModbusRTUMaster object, using the RS-485 or RS-232 port (depending on availability) #if defined HAVE_RS485_HARD #include <RS485.h> ModbusRTUMaster master(RS485); #elif defined HAVE_RS232_HARD #include <RS232.h> ModbusRTUMaster master(RS232); #else ModbusRTUMaster master(Serial1); #endif uint32_t lastSentTime = 0UL; const uint32_t baudrate = 38400UL; //////////////////////////////////////////////////////////////////////////////////////////////////// void setup() { Serial.begin(9600UL); // Start the serial port #if defined HAVE_RS485_HARD RS485.begin(baudrate, HALFDUPLEX, SERIAL_8E1); #elif defined HAVE_RS232_HARD RS232.begin(baudrate, SERIAL_8E1); #else Serial1.begin(baudrate, SERIAL_8E1); #endif // Start the modbus master object. // It is possible to define the port rate (default: 19200) master.begin(baudrate); } //////////////////////////////////////////////////////////////////////////////////////////////////// void loop() { // Send a request every 1000ms if (millis() - lastSentTime > 1000) { // Set random values bool values[5]; for (int i = 0; i < 5; ++i) { values[i] = random() & 0x01; } // Send a Write Multiple Coils request to the slave with address 31 // It requests for setting 5 coils starting in address 0 // IMPORTANT: all read and write functions start a Modbus transmission, but they are not // blocking, so you can continue the program while the Modbus functions work. To check for // available responses, call modbus.available() function often. if (!master.writeMultipleCoils(31, 0, values, 5)) { // Failure treatment Serial.println("Request fail"); } lastSentTime = millis(); } // Check available responses often if (master.isWaitingResponse()) { ModbusResponse response = master.available(); if (response) { if (response.hasError()) { // Response failure treatment. You can use response.getErrorCode() // to get the error code. Serial.print("Error "); Serial.println(response.getErrorCode()); } else { // Get the discrete inputs values from the response if (response.hasError()) { // Response failure treatment. You can use response.getErrorCode() // to get the error code. Serial.print("Error "); Serial.println(response.getErrorCode()); } else { Serial.println("Done"); } } } } }
1. Once the sketch is opened, click on Tools > Board > Industrial Shields boards > And select the M-Duino family.
2. Then, select the PLC model by going to Tools > Model > And selecting the model. In our case: M-Duino 21+
3. Select the port by going to Tools > Port > And select the port of the Arduino board.
4. Finally, either click on the arrow to upload the sketch, or go to Sketch > Upload.
MODBUS RTU SLAVE
Once the master is already programmed, we are going to do the same as with the Master PLC, but choosing the ModbusRTUSlave sketch. So:
1. Change the B type cable and connect it to the other M-Duino PLC.
2. Go to the top bar, and click on: File > Examples > Modbus > and select the ModbusRTUSlave sketch.
3. Once the sketch is opened, click on Tools > Board > Industrial Shields boards > And select the M-Duino family.
4. Then, select the PLC model by going to Tools > Model > And selecting the model. In our case: M-Duino 21+
5. Select the port by going to Tools > Port > And select the port of the Arduino board.
6. Finally, either click on the arrow to upload the sketch, or go to Sketch > Upload.
After everything is ready, you will be able to see random values (either 0 or 1), to the digital outputs from your Slave PLC!
Modbus RTU Tutorial: How to Write Multiple Coils with M-Duino PLC
