Meet the IoT Open-Source micro-controller based on Arduino MKR1010 or ESP32

Tell me more

Transform your industrial processes with the power of IoT

WIS open-source micro-controller offers unparalleled versatility and connectivity for your most demanding applications.

The WIS micro-controller combines the benefits of the Open Source Hardware to provide a reliable and customisable solution for your industry.

Elevate your industrial operations with the latest in IoT technology.

Powerful and standard industrial communications

Wireless communications
WiFi & Bluetooth Available

External Buses Available
Ethernet, I2C, SPI, RS485 half-duplex or UART

LoRa and Narrow Band options

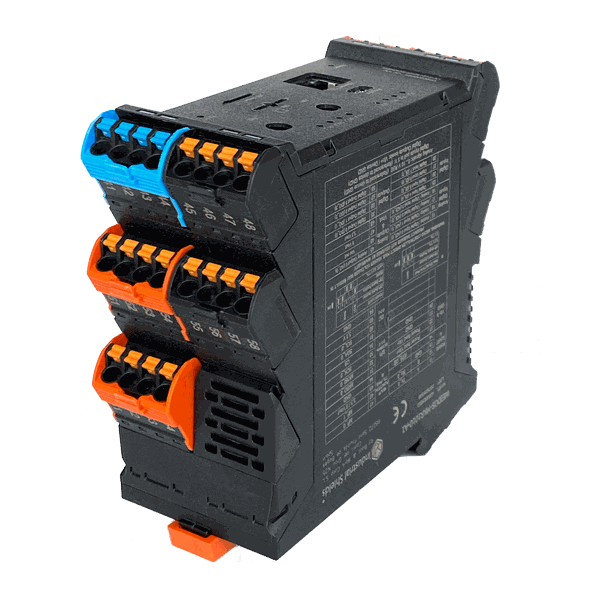

WIS - Open source micro-controller based on Arduino MKR & ESP32

WIS - Open source micro-controller based on Arduino MKR & ESP32

WIS PLC Highlights

4+4x Digital Inputs
4x Analog Inputs

4x Digital Outputs
1x Analog Outputs

WiFi & Bluetooth, Ethernet, I2C, SPI, RS485 half-duplex or UART


Directives

RoHS
EN 50581

LVD
EN 61010-1, EN 61010-2-201

EMC
IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4

RED
EN 301 489-1, EN 301 489-52, EN 301 489-3, EN 301 489-17, EN 300 328, ETSI EN 300 220-1, ETSI EN 300 220-2, EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 301 511

Safety
IEC62311

WIS - Open source micro-controller based on Arduino MKR & ESP32

WIS - Open source micro-controller based on Arduino MKR & ESP32


Connection Data

Wire Connection Cross Section AWG, min - max
AWG 24 - AWG 14

Solid, min H05(07) V-U, min – max
0,2 mm2 - 1,5 mm2

Stranded, min H07 V-R, min – max
0,2 mm2 - 2,5 mm2

Flexible, min H05(07) V-K, min – max
0,2 mm2 - 2,5 mm2

w. plastic collar ferrule, DIN 46228 pt.4, min - max
0,25 mm2 - 2,5 mm2

Ethernet Interface
RJ45 Female Socket

USB (Programming Interface)
Micro-USB Type B Female Socket

External antenna connections
SMA Female

Other
μSD Interface, Reset Button, Real Time Clock

(CR1220 Battery not included)

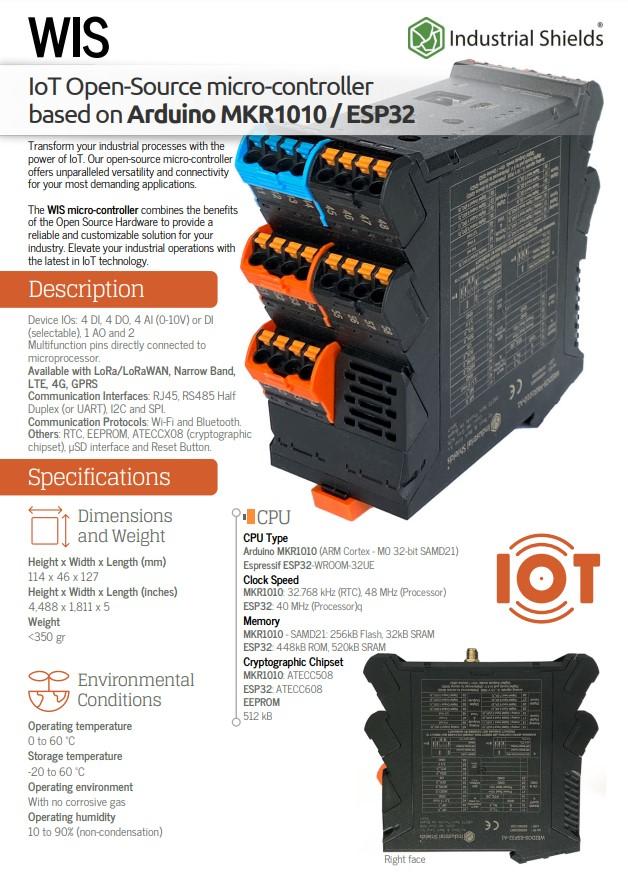

Want to know more about the WIS IoT micro-controller?
Download the Brochure👇
